Electricians' operating and testing manual; (1910)
Horstmann, Henry C. [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] joint author · Chicago, F. H. Drake & co · leaf 144

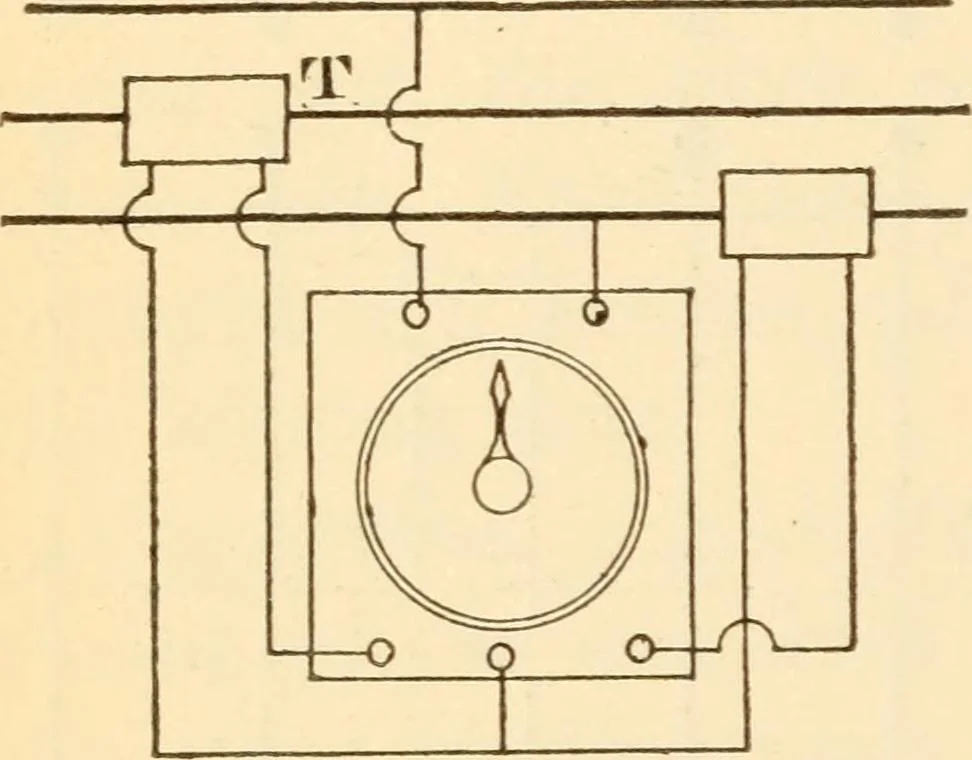

Operating and Testing Figure 92 shows the switchboard connections of theWestinghouse synchroscope arranged for high poten-tial. V T are the voltage transformers, one for eachmachine, P the plug receptacles and L the synchroniz-ing lamps. The power factor meter is similar in principle to…
Electrical engineering · Electric testing
