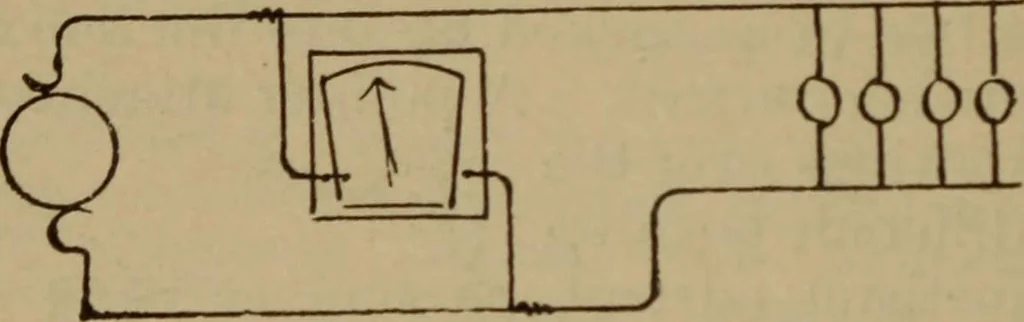

ving a scale of unequal divisions,and generally cramped at each end. The instrument is notdead beat, is readily affected by magnetic fields, and canonly be used in a vertical position. 205. Connecting Ammeters in Circuit.—Since the totalcurrent to be measured in any circuit must flow through… … _E_110_. Fig. 190.—Ammeter Incorrectly Connected in Parallel with the Circuit. ammeter has a resistance of. 1 ohm and that it is incorvplaced in parallel with some incandescent lamps conneito a dynamo, Fig. 190. How much current will flowthrough the ammeter if the pressure is 110 volts between tlit…
