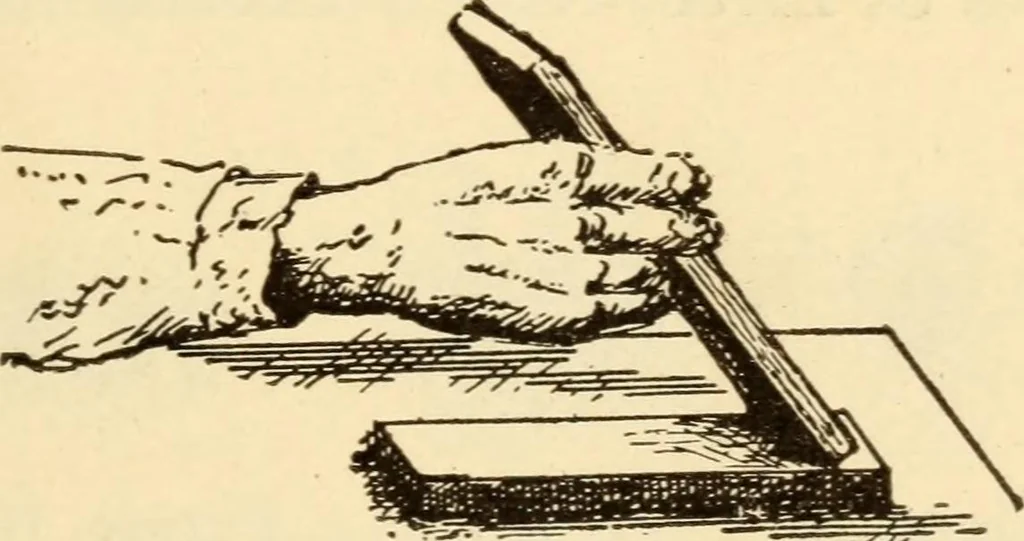

which is to be magnetized as shown in Figure 7.Tf the inducing magnet is strong it is not even neces-sary to bring it in contact with the bar to be magnet-ized. One must proceed in a systematic manner, how-ever, that is, always touch the same end of the bar tobe magnetized with the same end of the… … Figure 7 Permanent magnets are often made up of a numberof bars of equal length and shape fastened togetherand are then known as compound magnets. Perma-nent magnets can be demagnetized by heating to a redheat. ELECTRO-MAGNETS Electro-magnets differ from permanent magnets;first, in being made of…
