Electricians' operating and testing manual; (1910)
Horstmann, Henry C. [from old catalog], Tousley, Victor Hugo, 1875- [from old catalog] joint author · Chicago, F. H. Drake & co · leaf 322

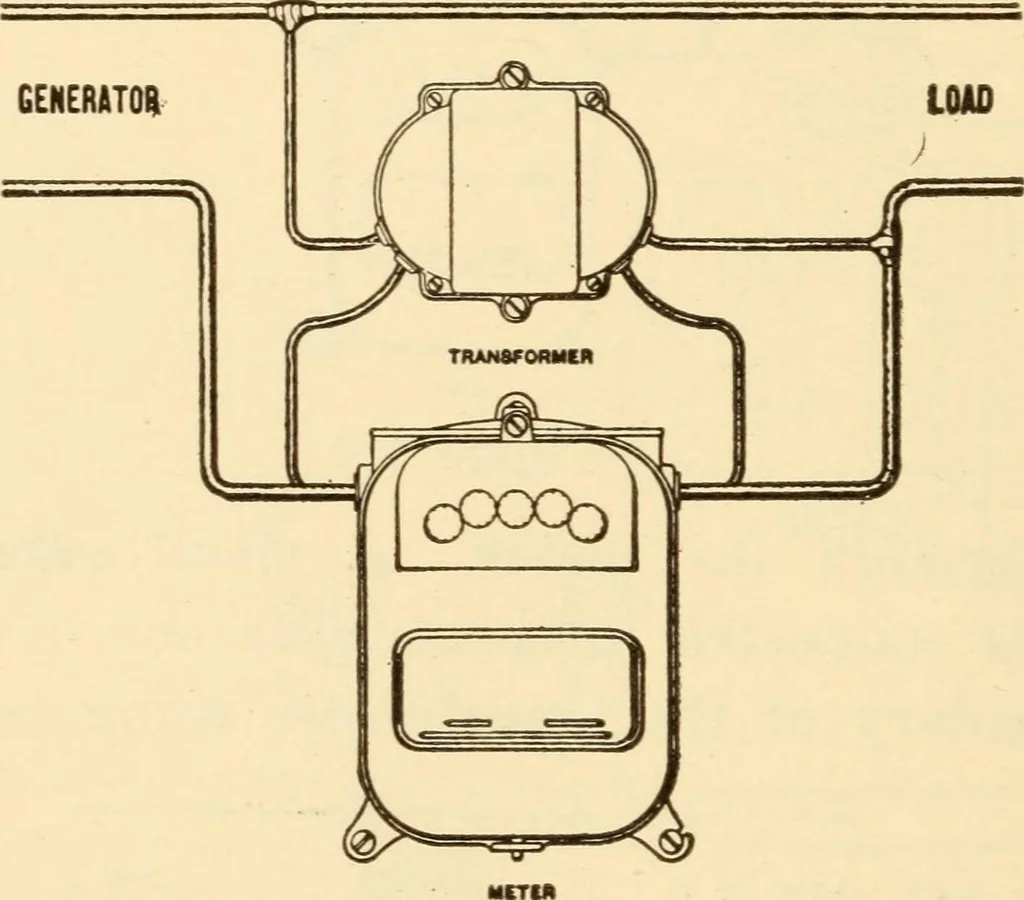

ns and the shunt field con 320 Operating ana Testing nected directly to the secondary as shown in Figures191 and 192. Various other combinations of both cur-rent and potential transformers are made use of; as,for instance, on a three-wire circuit of large capacity.In this case two current… … Figure 191 general directions which apply to all. A meter is asomewhat delicate instrument and, although built towithstand ordinary usage, efficient operation demandscareful and intelligent handling. As has been stated,the revolving element of recording wattmeters restson jewel bearings. A slight…
