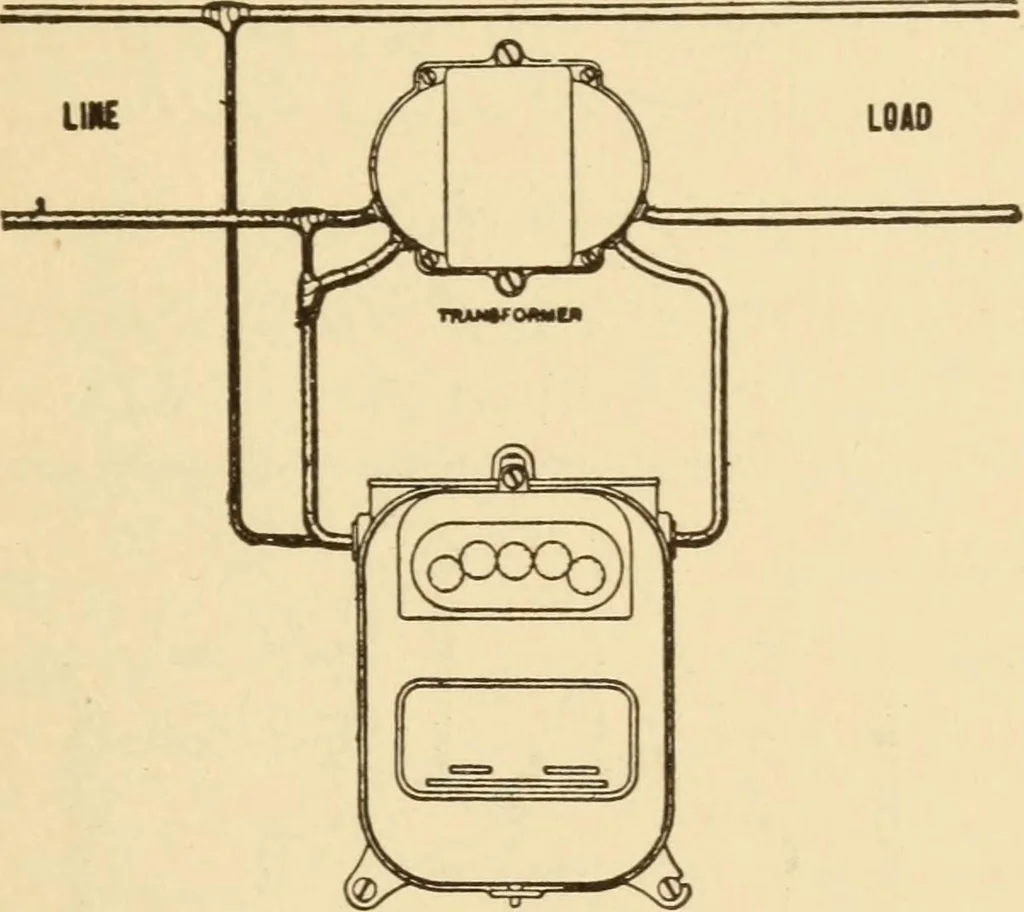

direct current circuits withthe consequent increase in the power consumed by themeter. Figure 188 shows the connections for a meter on abalanced three phase circuit. One main is carriedthrough the series coil of the meter and two taps fromthe other two main wires are carried to a common con-… … Figure 189 mains through the meter. A small current trans-former is connected in series with one of the mains,the secondary of the transformer being connected to
