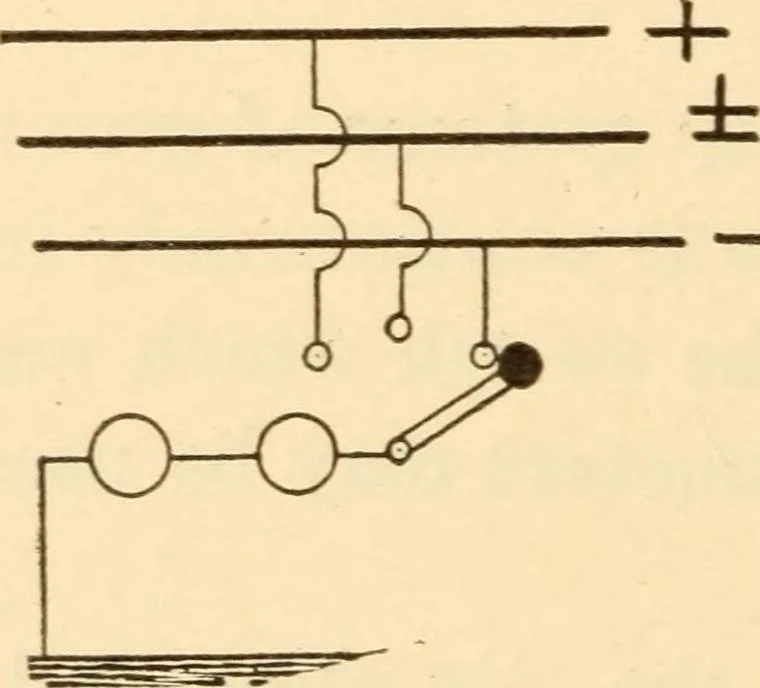

Figure 205 Figure 206 ground detector. The lamps shown above are not verysensitive and will not indicate a slight ground. Hencethe voltmeter is preferable. As long as both buttonsare in their normal position, the voltmeter measuresthe voltage of the system. By pressing down either … Figure 207 button, if a deflection is obtained, it indicates a groundon that side of the system to which the button belongs.Figure 207 shows ground detector connections usinglamps for an ordinary three-wire or three-phase sys-tem. Used in connection with the ordinary three-wire Ground Detectors and…
