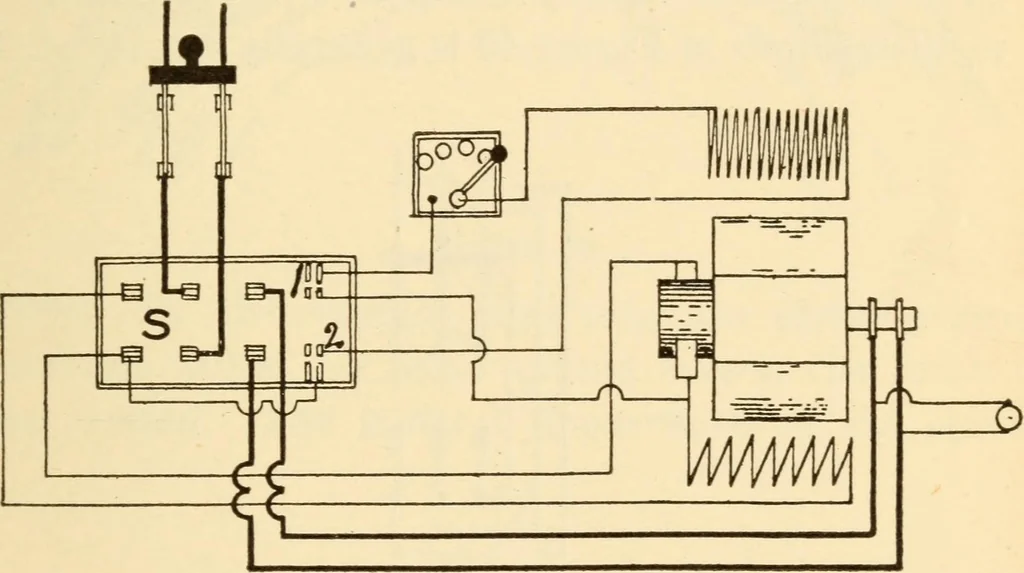

there is a flow through the 96 Types of Motors—Alternating Current 97 heavy winding and also through the fine, but thereis considerable difference in phase between these cur-rents and they set up a field, as already explained, fortwo phase motors. This causes the motor to start asa two phase motor… … Figure 64 Another form of motor is shown in Figure 64. Thearmature contains a direct as well as alternating cur-rent winding. The motor is started by throwing theswitch S (blades not shown) to the left. This sends analternating current through the fields and armatureand starts the motor. After it…
