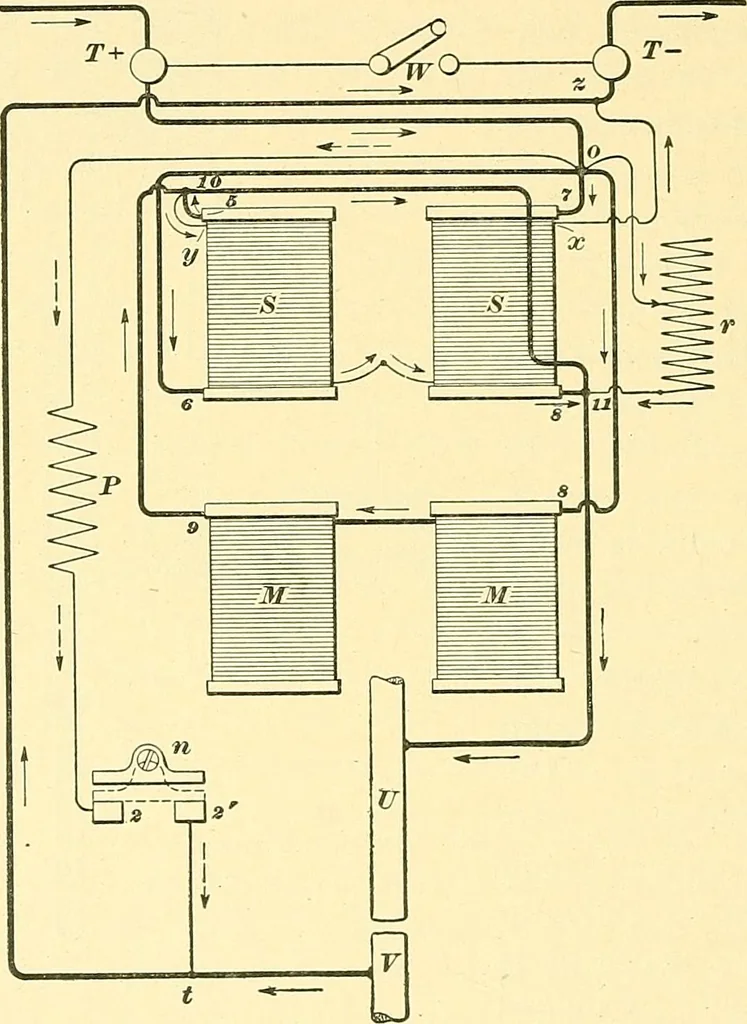

Fig. 33. 60 ELECTRIC LIGHTING. § 18 moves down a corresponding amount. Each armature isprovided with two holes, through which the conical polepieces project when the armature is pulled up. The clutchrod/ is attached to but insulated from the rocker a, and isfastened to the clutch g through the… … occupy after the lamp has just been started. When thelamp is out of circuit, armature e is up at its farthest posi-tion and armature d is down, the clutch ring k rests on thetripping table / and the carbons are together. A dashpot mis provided to steady the action of the lamp, and the cut-out…
