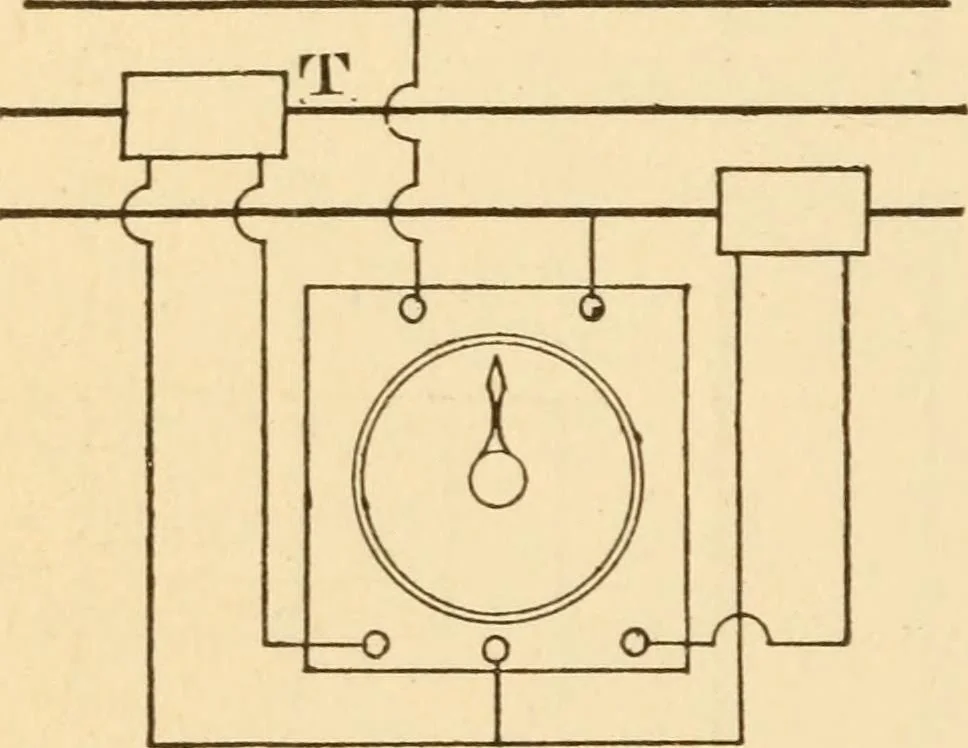

Operating and Testing Figure 92 shows the switchboard connections of theWestinghouse synchroscope arranged for high poten-tial. V T are the voltage transformers, one for eachmachine, P the plug receptacles and L the synchroniz-ing lamps. The power factor meter is similar in principle to…
