Electricians' operating and testing manual; a hand book for men in charge of electrical apparatus, repair men, trouble men, lamp trimmers, and electricians generally (1916)
Horstmann, Henry Charles, Tousley, Victor Hugo, 1875- joint author · Chicago, F.J. Drake & co · leaf 208

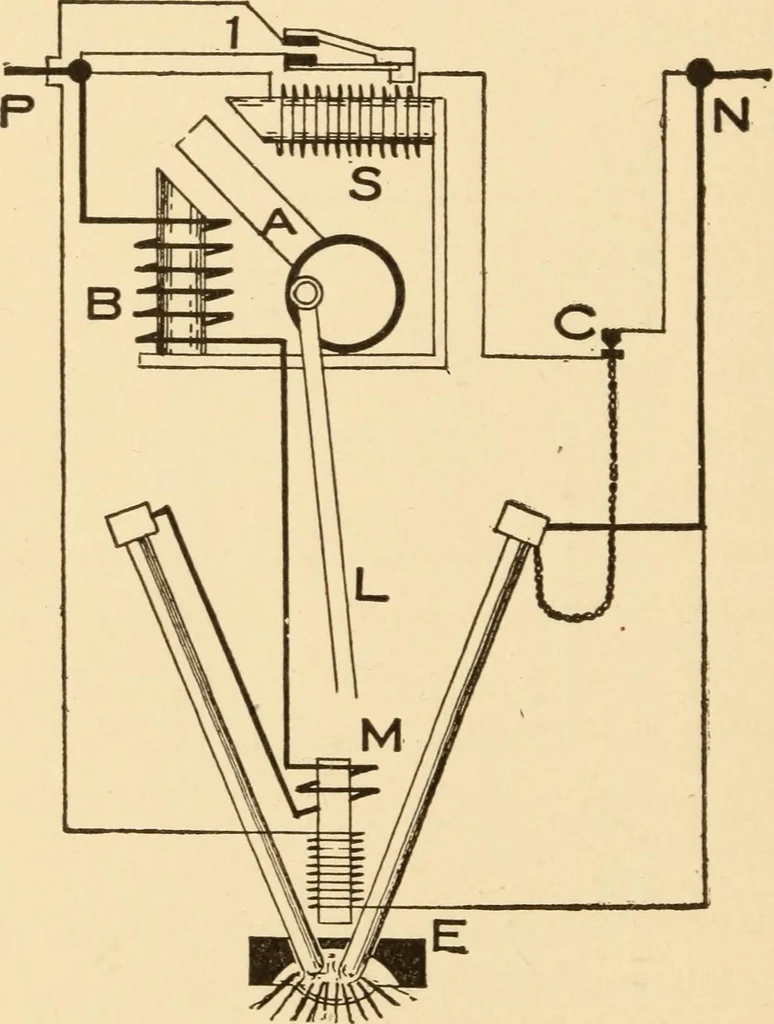

ther a shunt or series winding. Both windings arenot necessary. Figure 136 shows a type of lamp which is operatedwith a series winding only. In this case the current 204 Operating a7id Testing strength varies with the distance apart of the carbons.When the current becomes stronger the magnets… … Figure 137 often used on alternating current circuits. E is areactance which with alternating currents takes theplace of the resistance used with direct currents andprevents excessive rise of the current strength whenthe lamp is started. It is evident that a lamp of thistype could not be used on a…
Electrical engineering · Electric testing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
