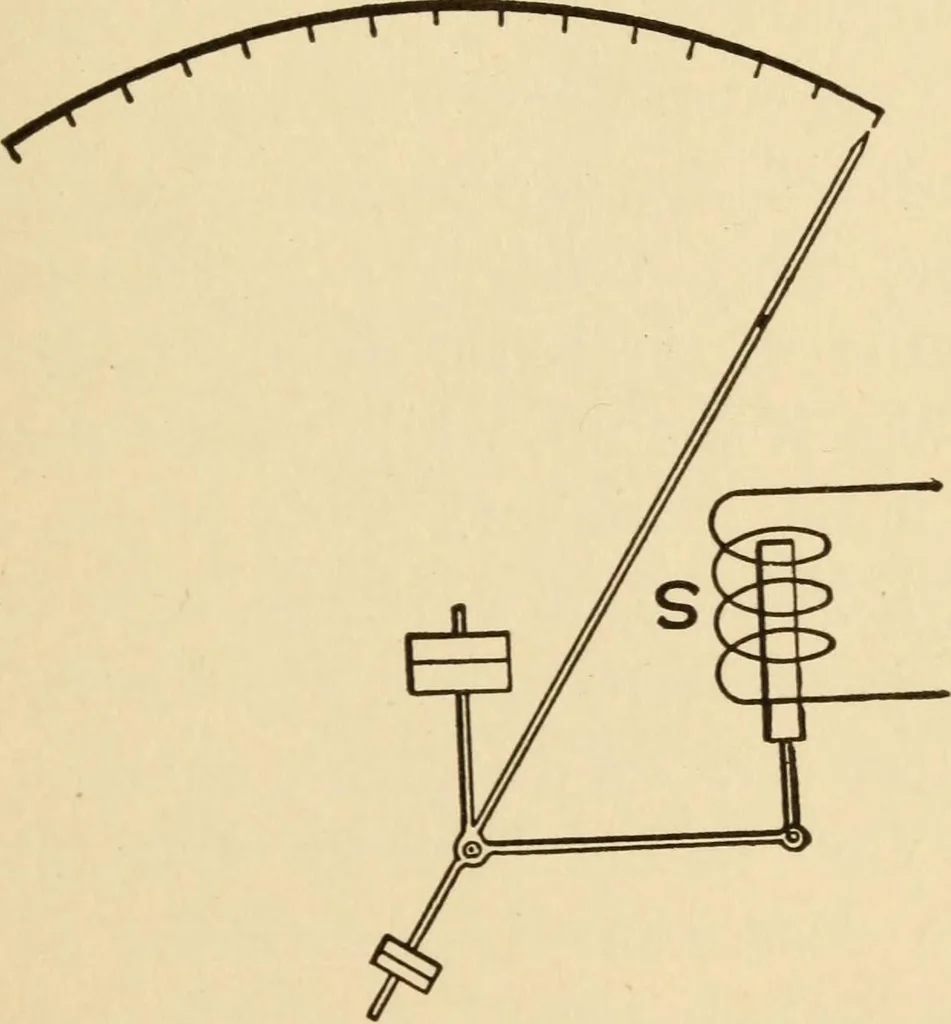

sc fastened to a shaft, rotatesin jewel bearings. Projecting over the disc on one Instruments for Testing 253 side and so arranged that the disc rotates between itspole pieces is a laminated magnet C, on which is wounda coil of wire. Another coil C is placed so that its i| i Figure 156field cuts… … Figure 157 coil C, coil C having no iron core, a torque is set upwhich tends to rotate the disc, the amount of deflec-tion being indicated by the pointer attached to theshaft. 254 Operating and Testing Figure 157 shows in a simplified form an instrumentwhich can be used for the measurement of…
