Electricity for everybody; its nature and uses explained (1895)
Atkinson, Philip · New York, The Century Co. · leaf 153

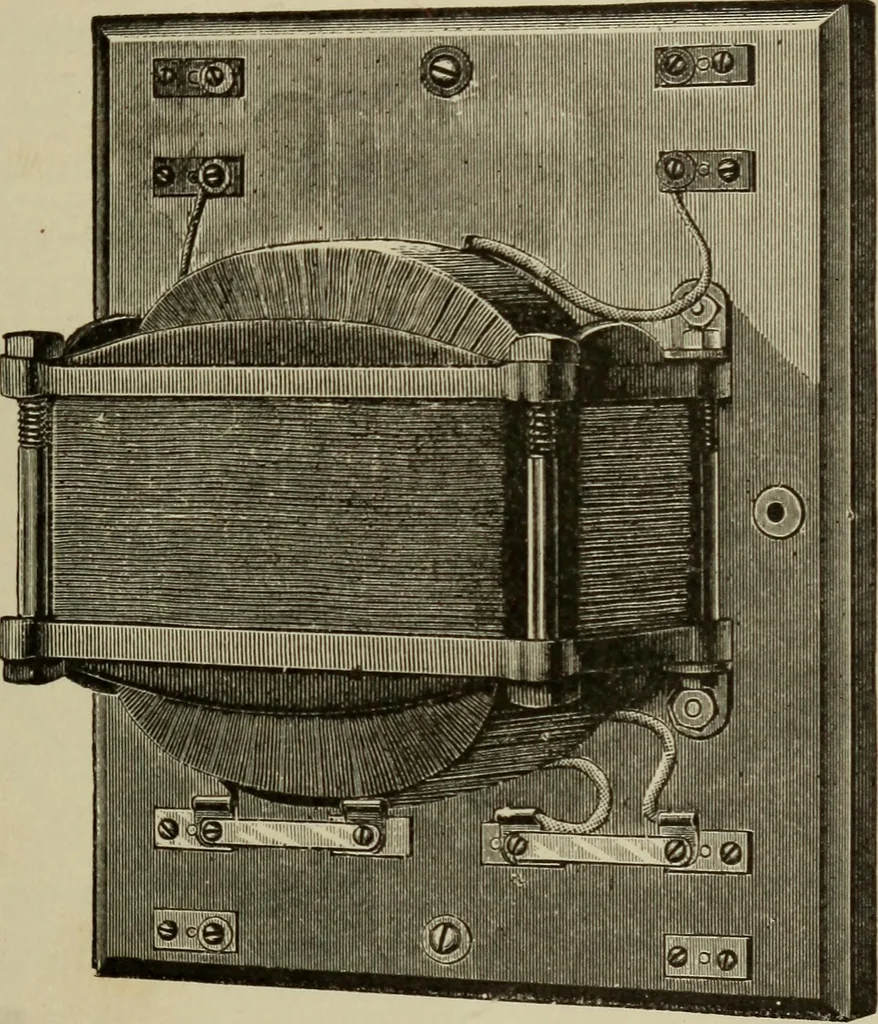

twocoils of copper wire, a primary and a secondary, whichare insulated from each other and from the core inthe most thorough manner. The core, instead of being DYNAMOS. 137 inclosed within the coils, partly incloses them, and iscomposed of a number of sheet-iron plates insulatedfrom each other with… … Fig. 62. the cross-section in Fig. 63, so that both are equally ex-posed to its magnetic inductive influence, instead of thesecondary coil being separated from it by the primary,and hence receiving only a minor share of that influence,as in induction-coils. The fine wire coil is usually made the…
Electricity
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
