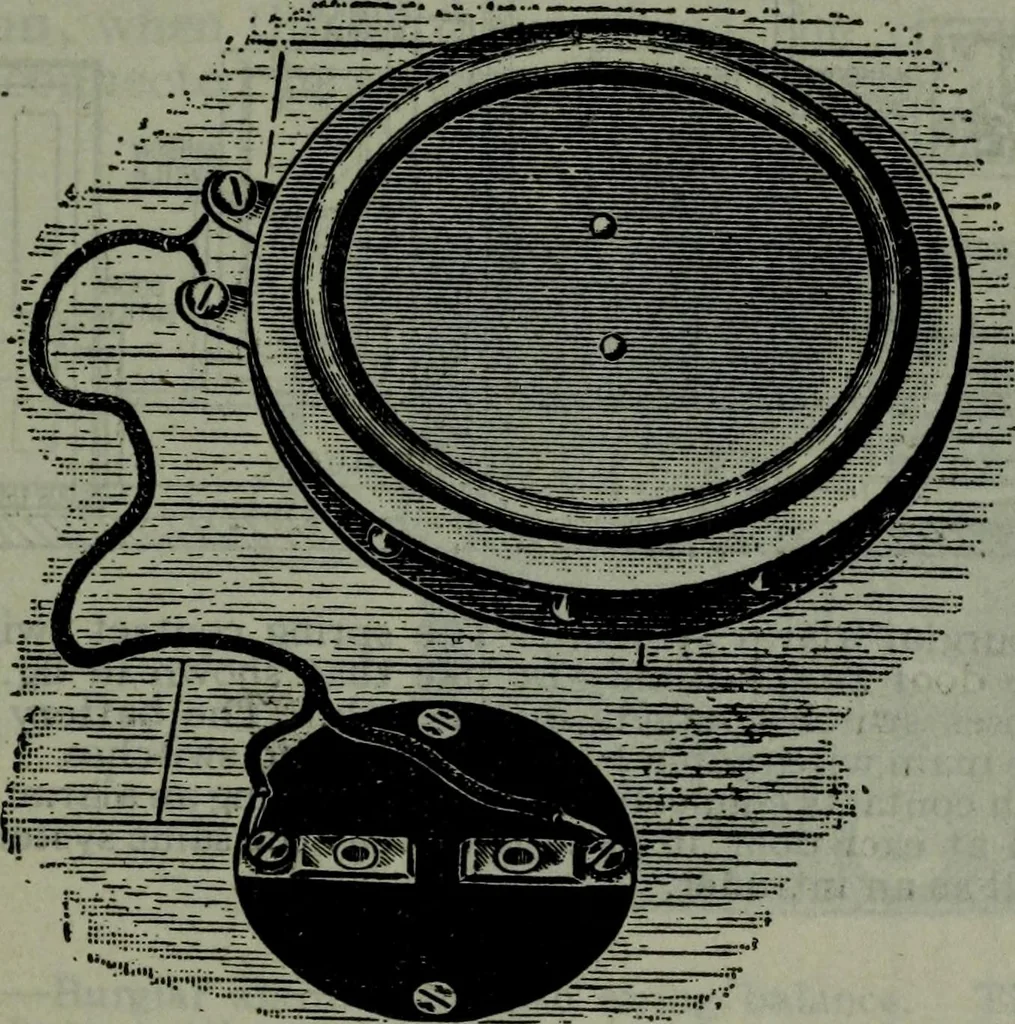

rglar alarm circuits.A floor tread such as is shown in fig. 3,310 will complete an electriccircuit and ring a bell as long as one stands on the tread. A mattingmade of several switch contacts connected in parallel will act likeseveral floor treads all connected in parallel. This is one way of… … Fig. 3,310.—Floor tread and floor connector for office or dining room floor or any placewhere it is desirable to operate a signal on the floor. A slight pressure of the foot willclose the contact. Its construction is simple; its action perfect. When placed underrug or carpet it will not become…
