[Bubier], Edward Trevert, 1858- [from old catalog] · Lynn, Mass., Bubier pub. co. · leaf 145

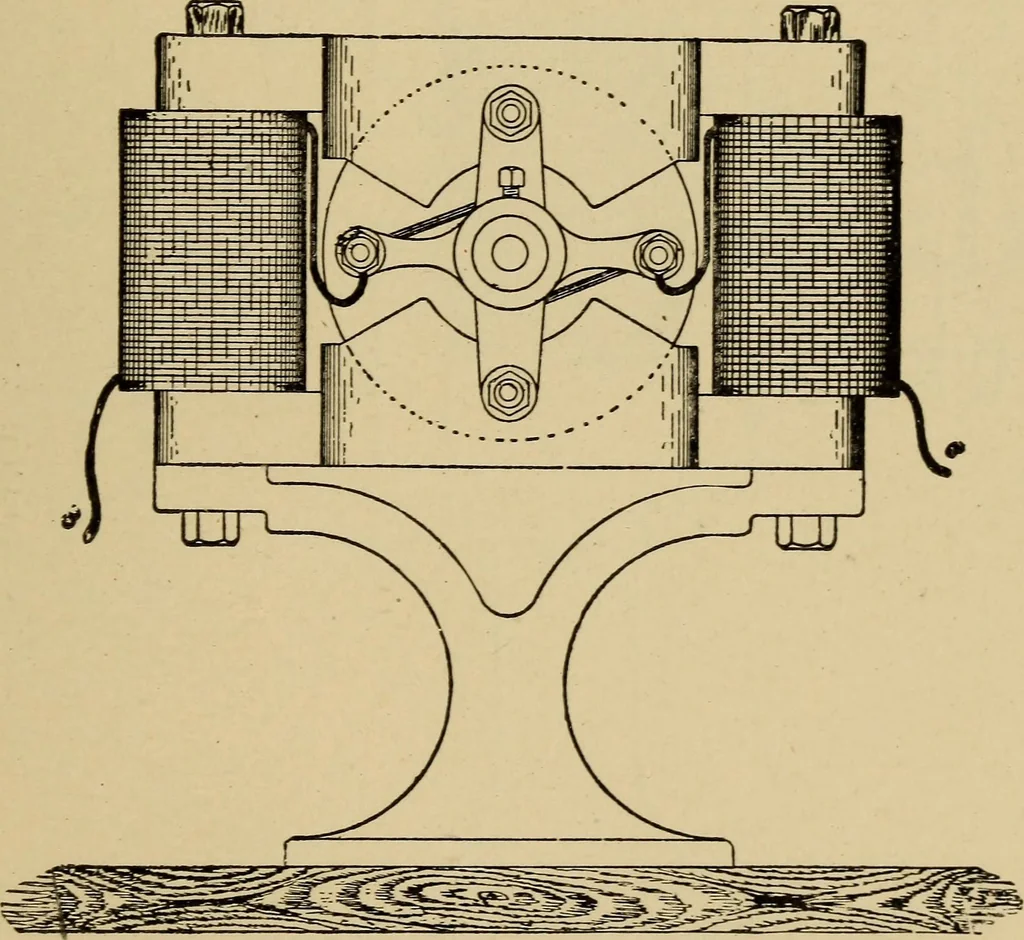

RECENT APPLICATIONS. 143 is the stud for the bearing on the pulley end ofmachine. Fig. 14 is the washer (made of fibre)lor the ends of the magnet-cores, being driven onand the edge of the metal riveted down over them Fij.13 OtAc view of Hiotor … to prevent the wire forcing them off. The wind-ing for the field magnets consists of No. 12 doublecotton covered wire, 36 turns and 6 layers, making432 turns on both magnets. This machine is cal- 144 ELECTRICITY AND ITS culated to develop one-half horse-power at 1500revolutions. The connections…
