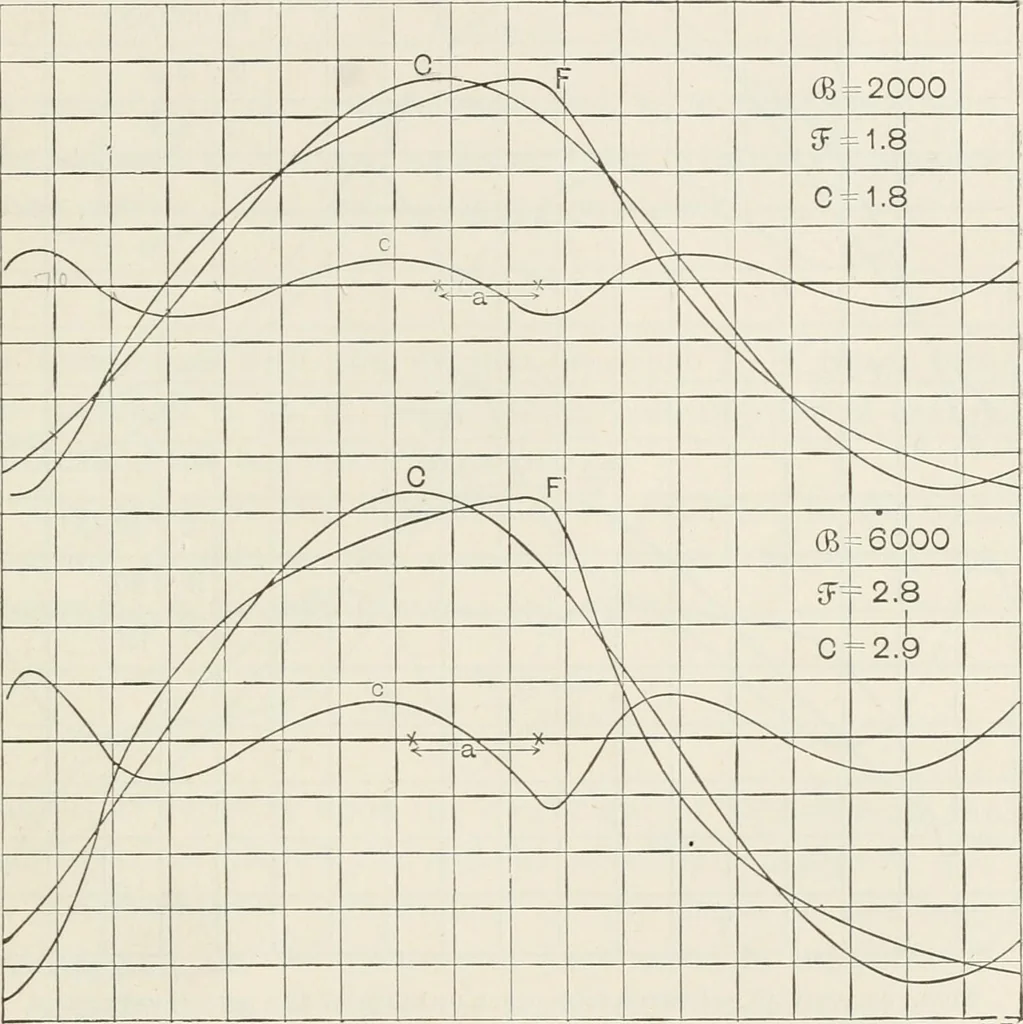

func-tions of the time in the same way as magnetic fluxesare plotted as sine waves. In this way different currentwaves are produced for different maximum magnetic fluxes.A number of such distorted current waves are shownin Figs. 39 to 42, corresponding to values of maximum flux EQUIVALENT SINE… … Bradley i PoaUa, Engre, N. F. Figs. 39 and 40.—Distortion of Current Wave by Hysteresis. and hollowed in at the descending side. With increasingvalues of maximum magnetic flux, the maximum point of thecurrent wave becomes pointed, as in Fig. 41, and ultimatelya sharp high peak is formed, as in Fig.…
