Electricity and magnetism : an elementary text-book, theoretical and practical (1920)
Glazebrook, Richard, Sir, 1854-1935 · Cambridge : The University press · leaf 48

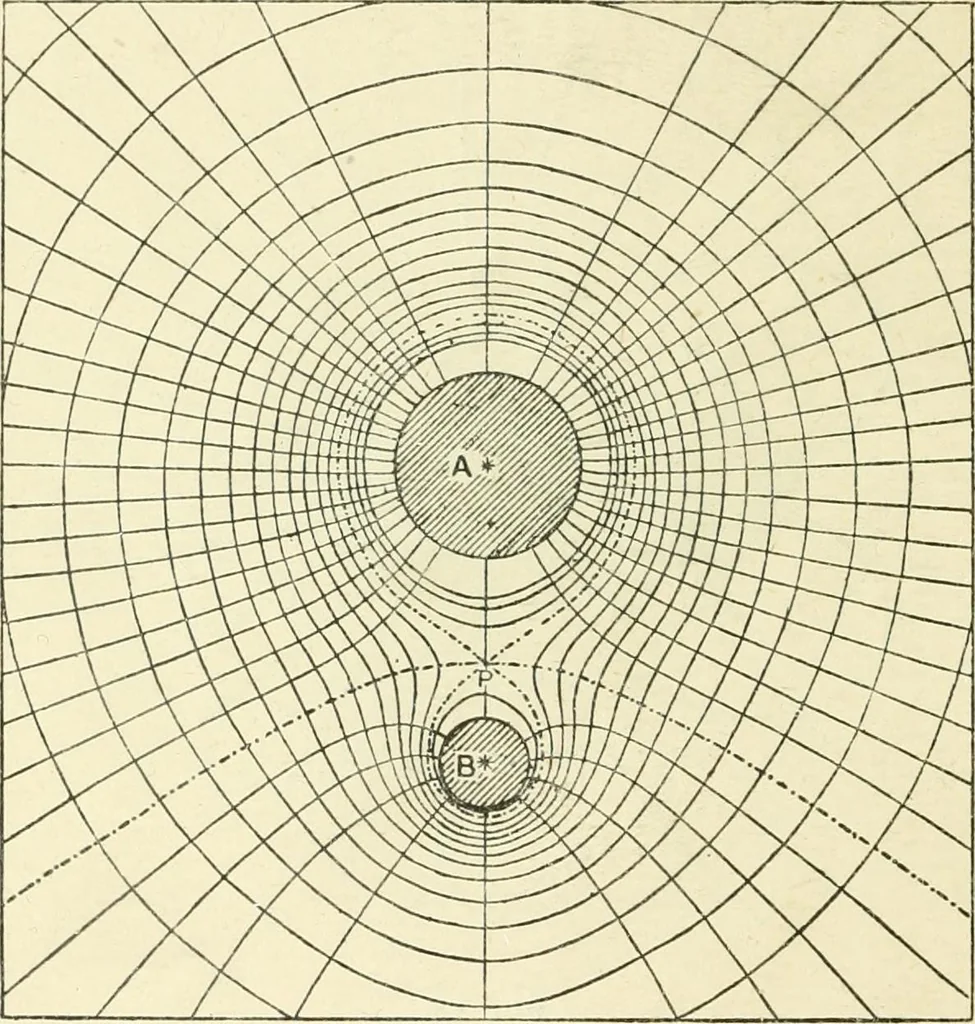

hese casestends to draw the two conductors together. The distribution on two similarly charged spheres is shewnin Fig. 19. The lines run from the spheres to the wall; those which 38 ELECTRICITY [CH. II start from either sphere towards the other are repelled as itwere by the corresponding lines from… … Fig. 19. The tension along the lines between the spheres and thewalls draws the spheres apart; they apparently repel eachother. Fig. 20 gives two oppositely charged spheres. A number of the lines from the positive sphere bendround and converge on the negative sphere; the negativesphere is at a…
