Modern American locomotive engines; their design, construction and management. A practical work for practical men (1883)
Edwards, Emory, b. 1841 · Bridgeport, Conn., Frederick Keppy · leaf 215

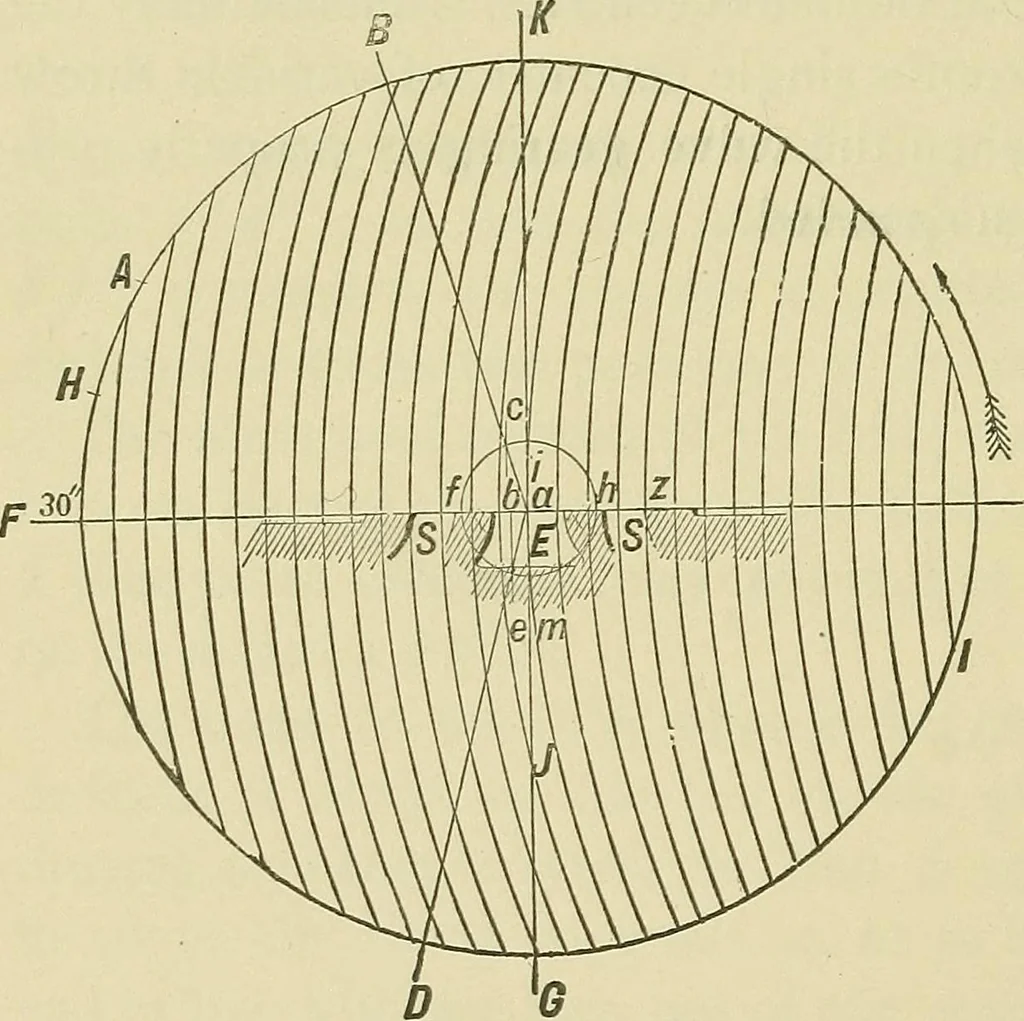

similar way. The motion of the valve by the stationary and theshifting links and double eccentrics, is substantially thesame as that from a single eccentric of variable throwand advance, when the valve gearing is properly pro-portioned and sr^pended. CHAPTER XVI. VALVE MOTION DIAGRAMS. The outside… … a g e Fig. 65. Fig. 64. resent the rods length. S S, in Fig. 64, are the steamports, E the exhaust port, and X X the bridges. Fig.63 is a sectional elevation of the valve divided by the (204) VALVE MOTlOiN DIAGRAMS. 2O5 line a d. The valve drawing is cut out at the hne/c,and placed on the line…
Locomotives
Internet Archive · Northeastern University Library · Public Domain Mark 1.0. Free to use for anything.
