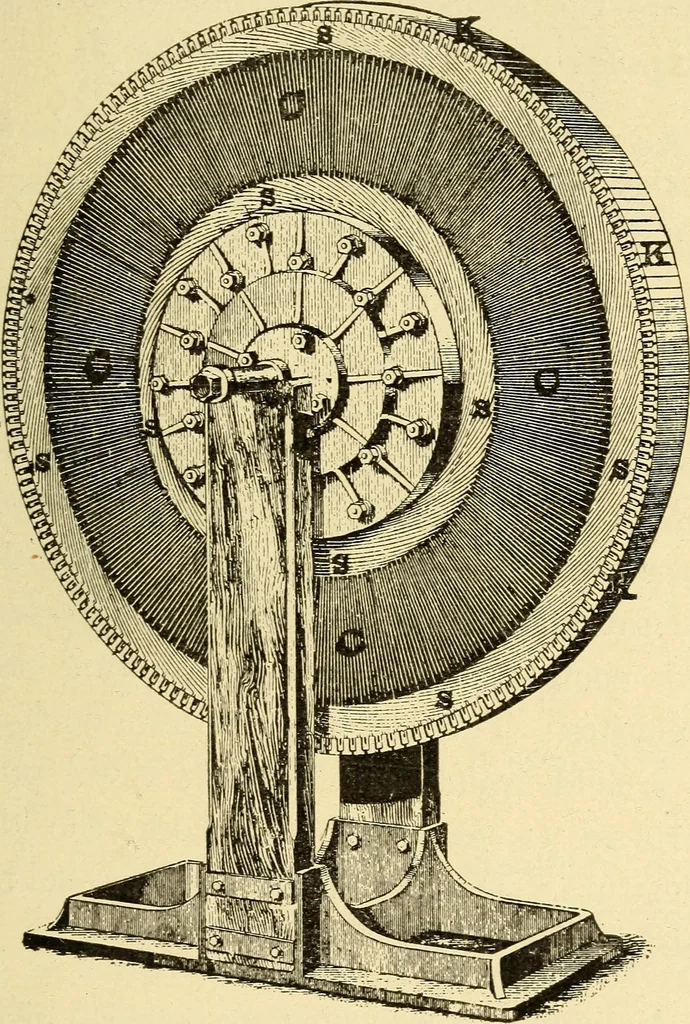

Fig. 34.—Motor with Gramme King Armature, Fig. 33, represents a motor furnishedwith a ring armature A A A. Here thefield magnets are placed inside the arma-ture, as is sometimes the case, thoughmore frequently the armature is placedinside the field, as is shown in Fig. 34, THE TRANSMISSION^ OF… … Fig. 35.—Disc Armature. 172 THE ELECTRIC MOTOK AND where the arinatiire A, is placed betweenthe poles JV and aS^, of the magnet J£ An example of a disc armature is shownin Fio;. 35. Here a number of insulatedradial conductors C^ C\ are held like spokesin a wheel, and are connected togetherby…
