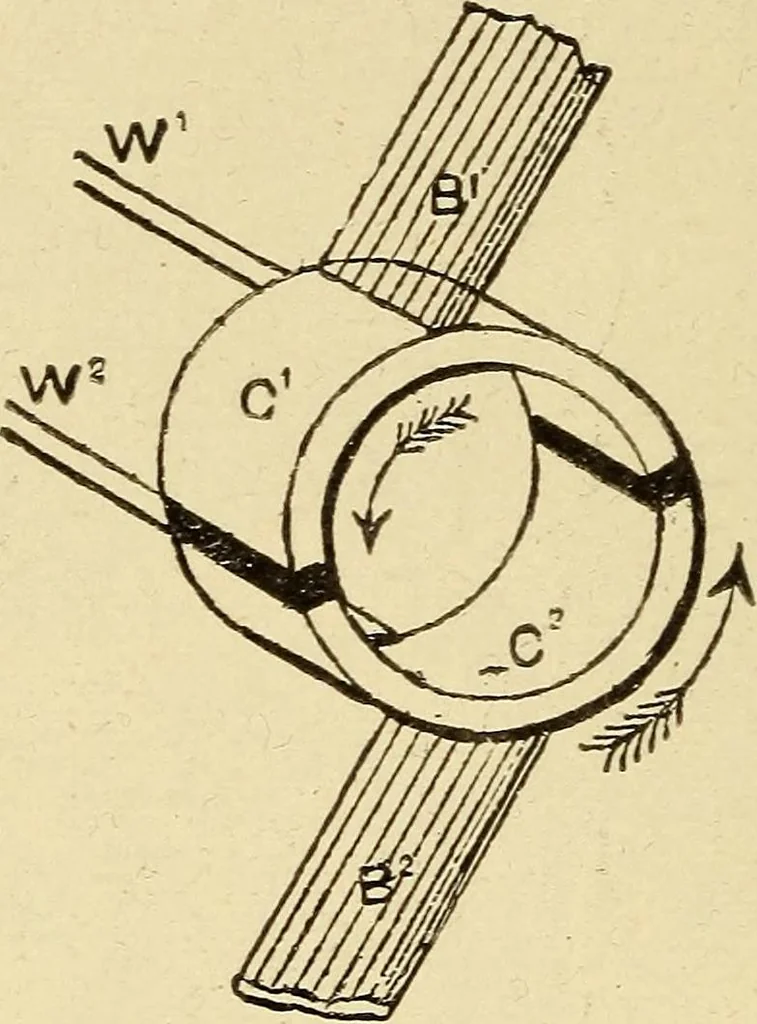

184 THE ELECTRIC MOTOR AND A simple form of commutator, called atwo-jpart commutator is shown in Fig. 44.SuctL a commutator would be suitable forcommuting the current produced in a singleloop of wire on an armature rotated in a … Fig. 44.—Diagram of Two-Part Commutator. bipolar field. In this, commutator tlie wireTF^, is connected to the segment C^^ andthe wire TF^, to the segment C^. Underthese conditions, if the E. M. F. generatedin the loop whose terminals are TF^ andTF^, be in such a direction that TFV^s THE…
