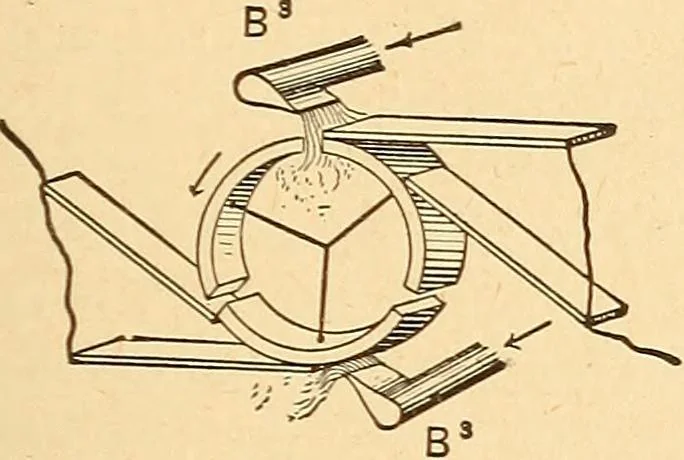

ction of destructive flashing at thecommutator of a dynamo-electric machine. A thin, forcible blast of air is delivered throughsuitable tubes at points on the three-part commu-tator cylinder of the Thomson-Houston dynamo,where the collecting brushes bear on its surface.The effect is to blow out the… … Fig. 4, Fig. 4. Air-Blast on Commuta The blast-nozzles are shown at B3, Bsnear the collecting brushes. The air-supply is obtained from a blower at-tached directly to the shaft of the machine. Itsconstruction and operation will be readily under-stood from an inspection of Fig. 5, in which the
