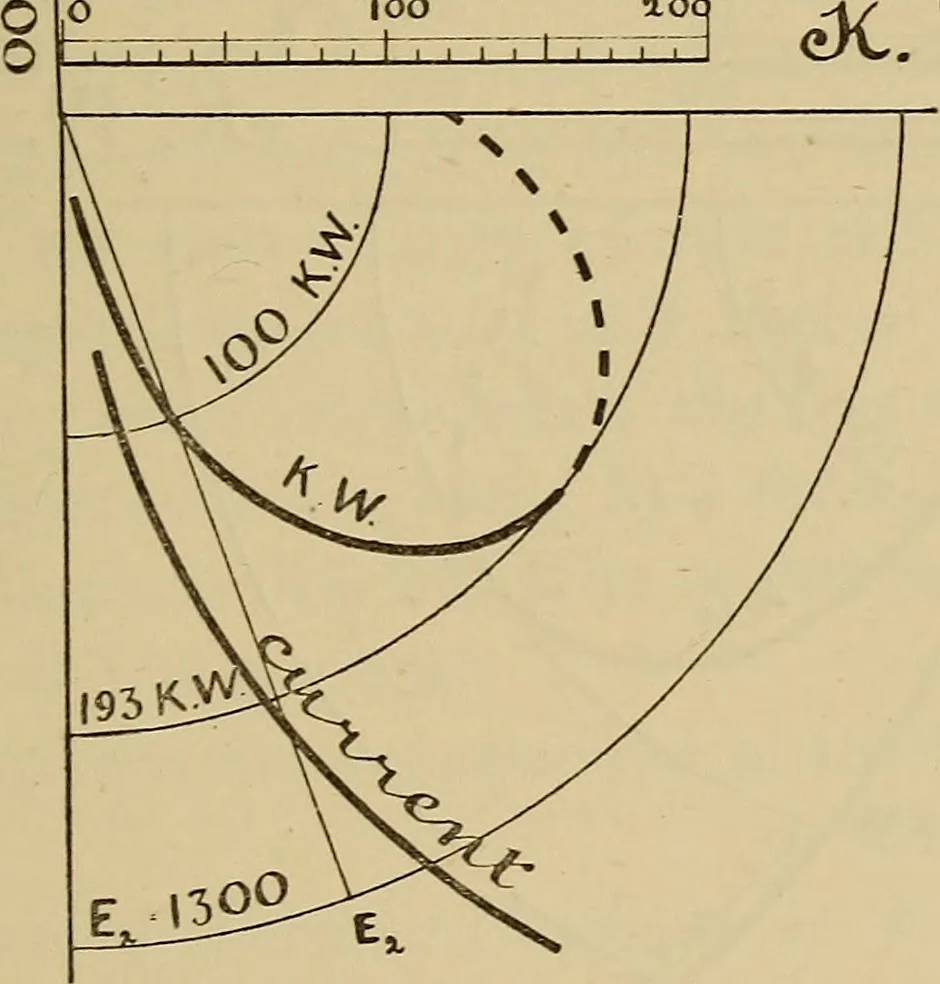

true values. The con-struction need not be explained at length ; it is quite EXAMPLE OF TRANSMISSION PLANT. 275 simple, though somewhat tedious. The result is shownin Figs. 95, 96, and 97. The curve giving the powerrequired by the generator has been omitted in all thesediagrams, the power curve… … noticed that up to about 100 Kwt. (being the normalload) the two power curves coincide, but they divergefor greater loads, and the breaking-down point is reachedvery much sooner than would be the case if armaturereaction were absent. The diagram illustrates in astriking manner the importance of…
