An elementary book on electricity and magnetism and their applications (1919)
Jackson, Dugald C. (Dugald Caleb), 1865-1951, Jackson, John Price, b. 1868, Black, Newton Henry, b. 1874 · New York, The Macmillian Co · leaf 131

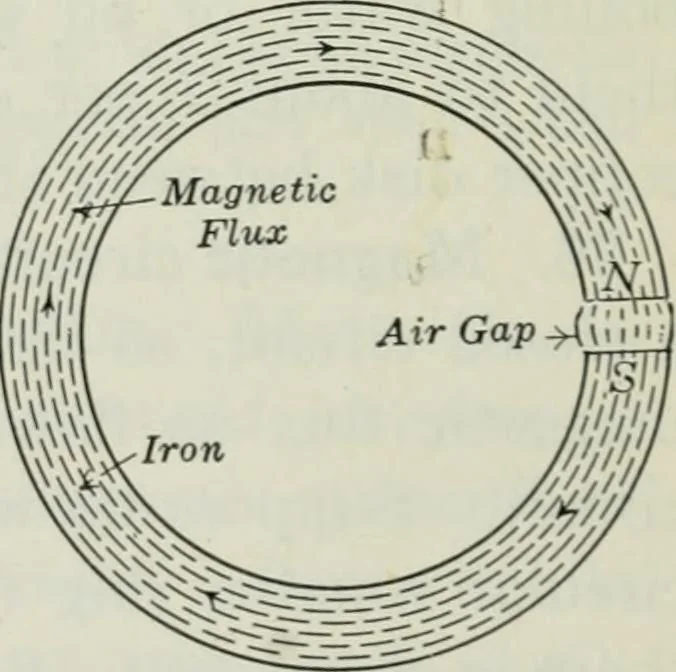

etic circuits inelectrical machinery are of this kind.It should also be noted that the mag-netic circuit is quite analogous to anelectric circuit in that the introductionof resistance diminishes the magneticflux. There is, however, this difference :the introduction of an air gap into the ordinary… … Fig. 64. — Iron ring with airgap in magnetic circuit. ELECTROMAGNETISM 107 77. Magnetomotive force. We have already said that themagnetizing force of a solenoid or any coil of wire depends uponthe turns of wire as well as upon the intensity of the current.That is, magnetizing force is proportional…
