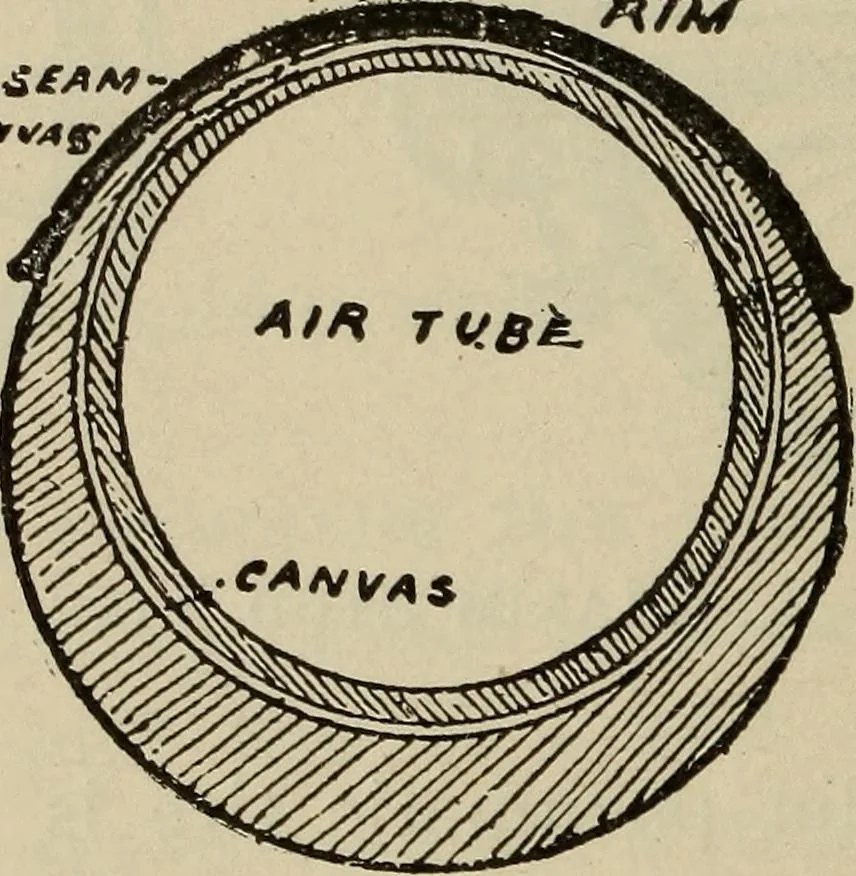

LING. out taking out the wheel. The outer cover is canvas-backed, with a kind of flange or edge at each side.These are fitted into deep grooves at each side of therim, and on the top of them are placed circles ofsquare wire the exact circumference of the wheel, andwith two projecting ears on both… … Mikado Pneumatic Tire. surrounded by a canvas casing, which is sewn withthe stitches on the outside, but so that the sewn por-tion rests on the rim. Under the edge of one side ofthe outer cover is solutioned a flap of rubber whichlies on top of that portion of the canvas casing whichrests on the…
