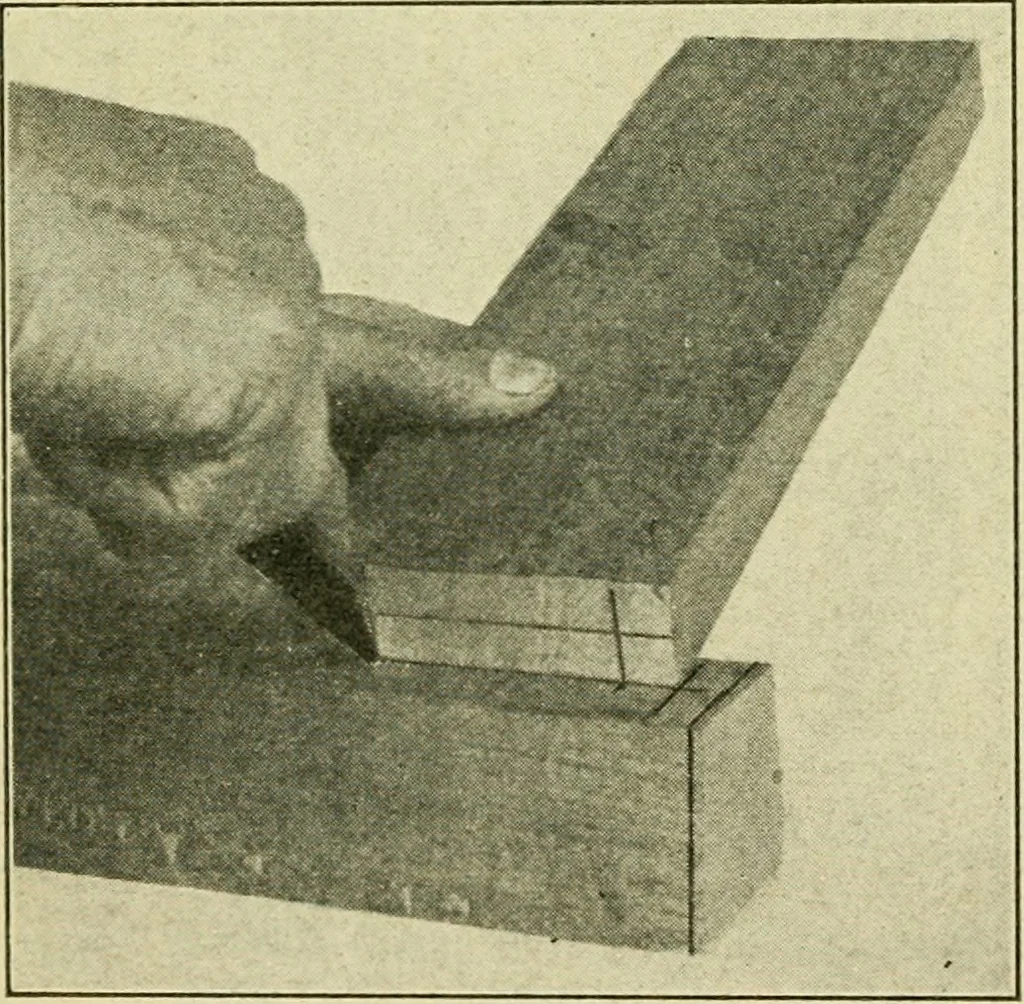

he rail willbe about f inch from the outside of the leg, and thenplacing a rail on the leg as shown in Fig. 116, andmarking the spaces. If the rail is not to be flushwith the top of the leg, a line should be drawn on the leg, showing wherethe upper edge ofthe rail will come.This is shown at Bin… … Fig. 116. Alarking for doweling the lines, the rails should all ends with a letter or marks made on the legs, so that each end can be returned to the same place. These marks should be placed where they will not be removed in scraping or sandpapering. The holes in the legs should be bored about…
