Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 195

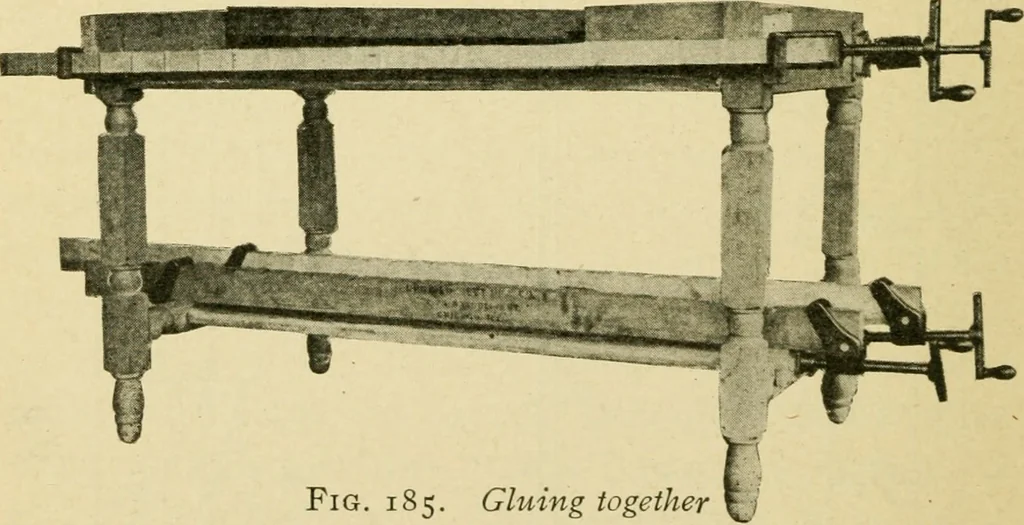

Fig. 184. Sigliting for wind Place the steel square and try-square as shown inFigs. 67 and 68. If the table is to have a drawer,the sides and rails are glued together before theends are attached, as shown in Fig. 180. … Fig. 185. Gluing together In gluing the whole together place a temporarypiece in the drawer openings as shown in Fig. 185. TABLES 189 The drawer should be made as directed on page53. As this is a large drawer, more care will berequired in making it. The joints at the cornersshould be dovetails. The…
Cabinetwork
