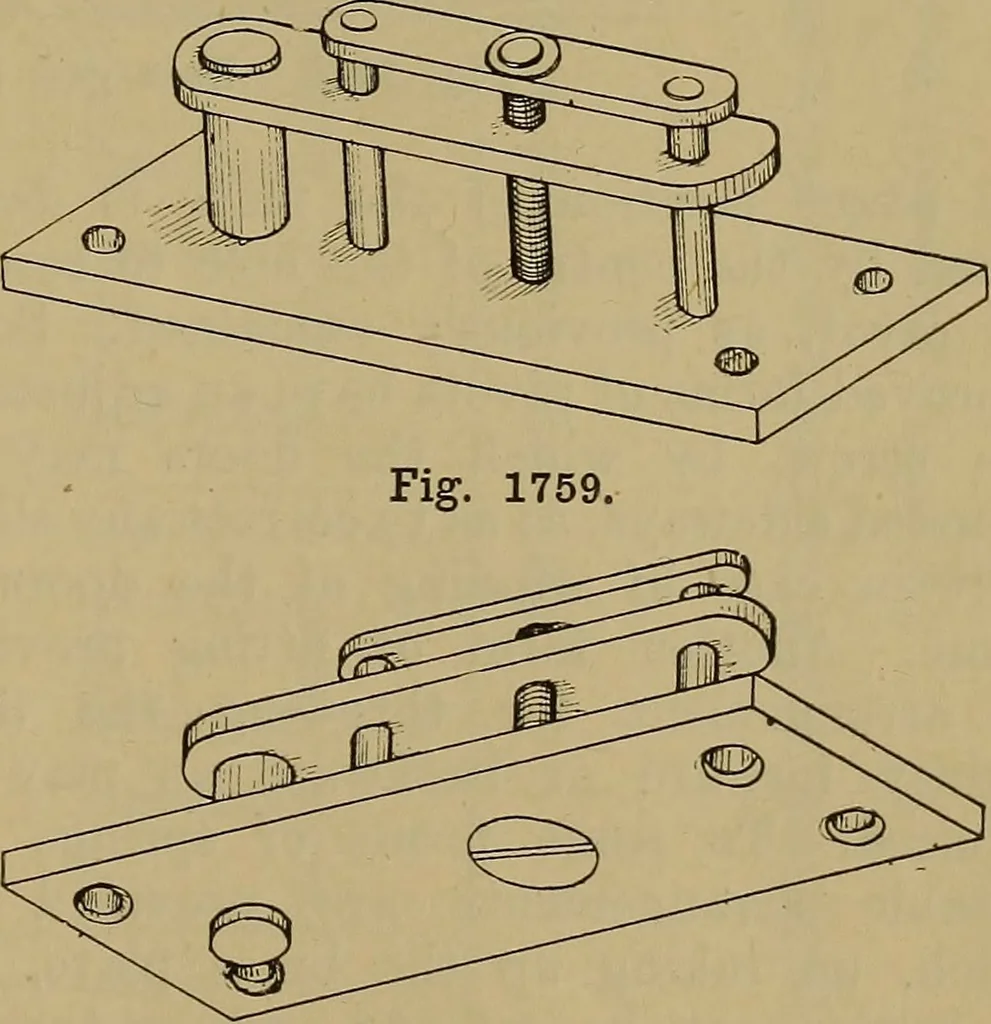

f course in the exact position it willhave to occupy, as explained above. Thebox is finally secured by filling in the spacesbetween the stone with cement. The nextoperation is to fit the shoe on the bottomof the door as represented at Fig. 1750.This will require to be very accurately… … Fig. 1760. Figs. 1759 and 1760.—Mode of Action of a PivotPlate. oU CARPENTRY AND JOINERY. according to the different makers, butare mostly constructed on the principlethat the head of a fixed screw, when turnedwith a screw-driver, acts on a plate to whichthe pivot is fixed, which may be raised…
