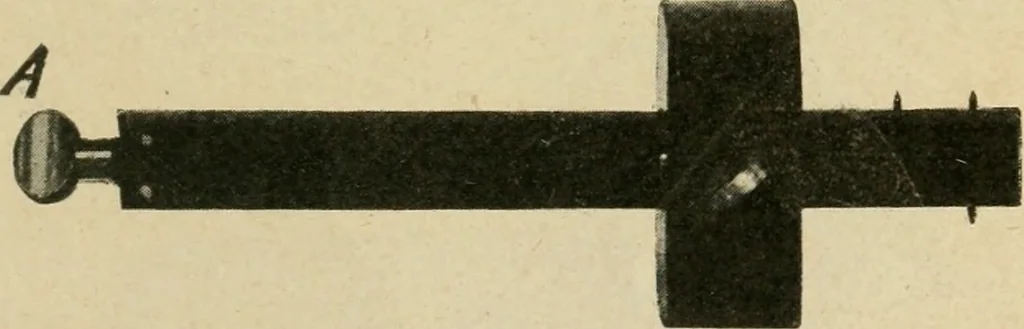

end ofthe bar (Fig. 280) until the two spurs are the properdistance apart, so that you may draw the lines forboth sides of the mortise at the same time. Thenadjust the head of the gauge until the mortise ortenon is located at the proper distance from the faceedge. The tightening of the head of the… … 268 ELEMENTARY CABINETWORK Spurs are set to give the correct width of both mor-tises and tenons; and then, after drawing the lineson one part of the work, the head only is moved toadjust the position of the spurs for the other parts.This insures the same space between all the lines. In the hands of…
