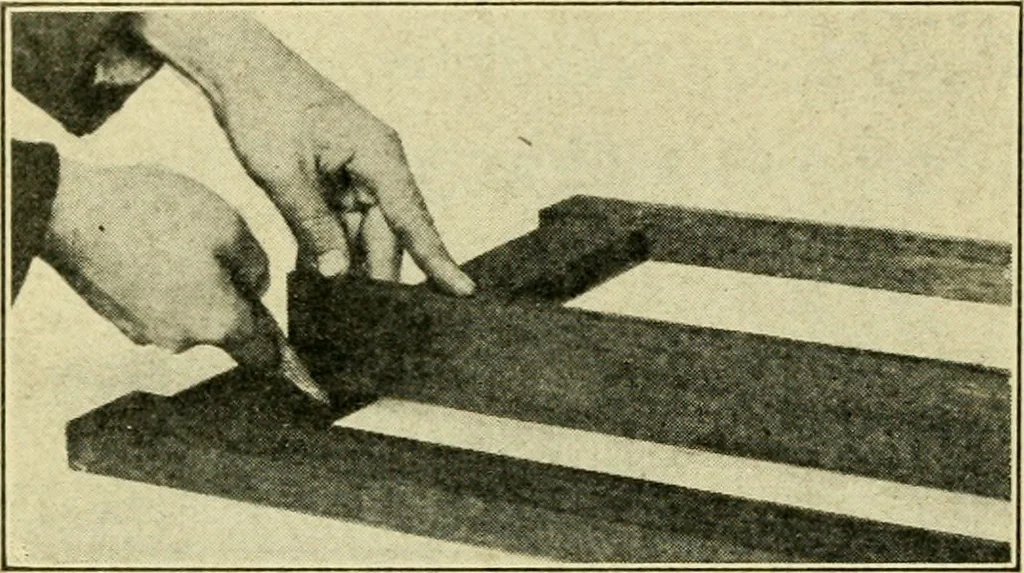

24 ELEMENTARY CABINETWORK joints at the corners are finished, the pieces areplaced together as shown in Fig. 9, and the space between the tenonson the slats ismarked. This is asafe way to locatethe lines. Thelength between thetenons may befound by measur-ing the space … Fig. q. Measuring vertical piecesin chair back between the mortises on the stiles, and then sub-tracting the space from the edge of the tenon tothe inner edge of the rail. In Fig. 156 it will be 27Iinches—the distance between the mortises less ^-inchshoulder at the upper rail, and J-inch shoulder…
