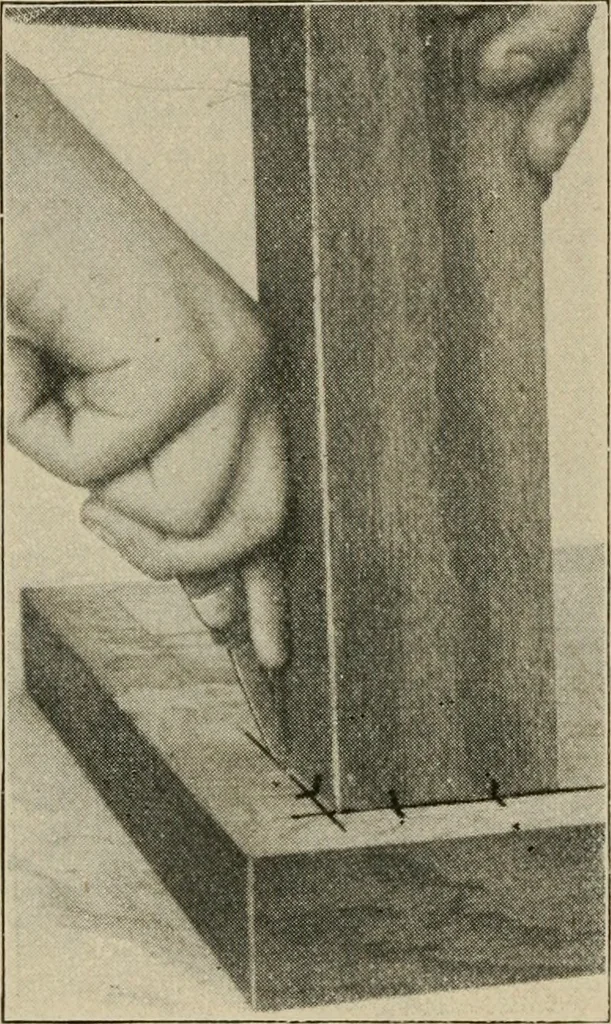

the endsof the legs about 2 inches deep. Glue the dowels into the top and allow the glue to dry, thenglue them into the legs. Fig.170 shows them in place and theleg ready to be driven down tightto the top. It is often easier toforce the dowels into place byclamping instead of driving. Ifbut one… … Fig. 1 6 7—Marking for Dowels 172 is a drawing showing howthe leg and screw would appearif cut through vertically at thecenter of the screw. Drawingsof this nature are called sec-tional drawings or sections.Fig. 173 shows the leg withthe hole bored, the screw andthe hollow pin which is drivenover…
