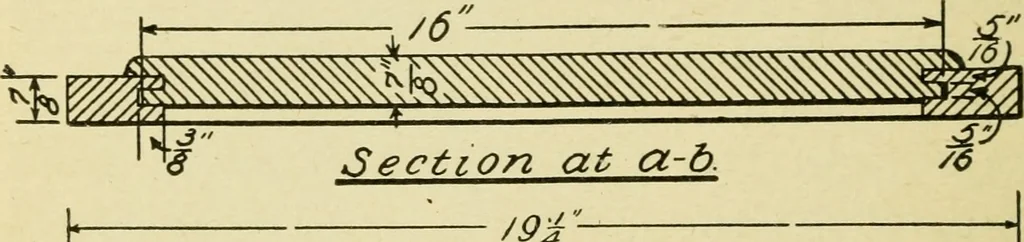

akes avery solid panel. Elevated Panel. The elevated panel (Fig. 38)is similar to the raised panel but requires thickerstock, because it must be fitted into the groove inthe framework and also be itself grooved, so that 52 ELEMENTARY CABINETWORK its elevated surface will cover the edges of both… … .^^ /6 ^6i y^r- -i\,f^ 5; J-t /?^ Fig. 38. Elevated panel as the raised panel. It may be flat, with squareedges slanted to each side and end, or oval. Thepanel should be finished before it is put into place.The rails and stiles, being partly covered by thepanel, must also be smoothed ready for…
