Elementary cabinetwork for manual training classes (1909)
Selden, Frank Henry. [from old catalog] · Chicago, New York [etc.] Rand, McNally & company · leaf 92

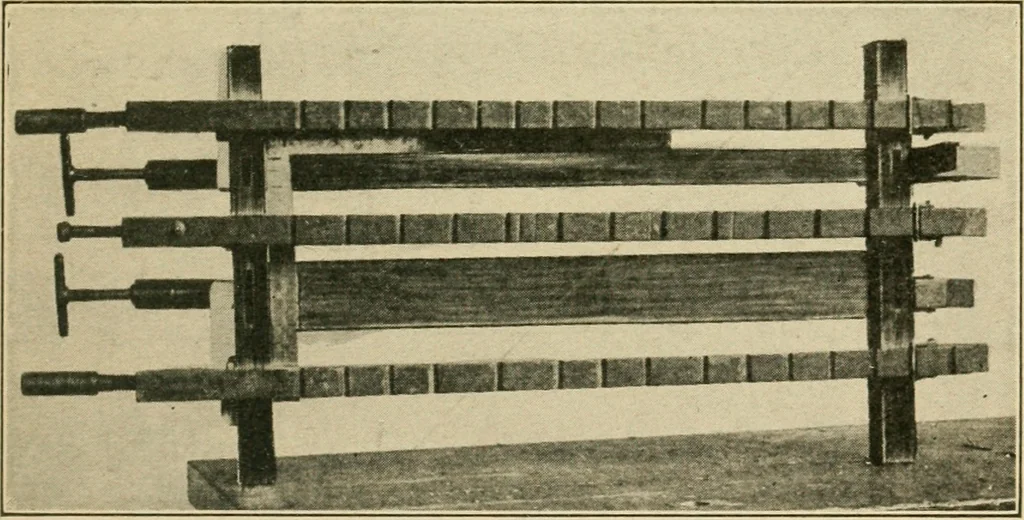

, etc., and the diagonal clamp applied. CLAMPING 85 Do not attempt to drive joints together afterthey have been covered with cold glue. This glue,if allowed to become sufficiently dry to make a goodjoint, will resist all efforts at hammering, but willyield to the steady pressure of a good clamp.… … Fig. 64. Clamping point, it will spring the pieces out of place. Thisapplies to the vertical as well as to the horizontaladjustment. Some clamps are so made that the pressure at theend of the screw is so far away from the bar, that itis necessary to block the work away from the bar inorder to bring…
Cabinetwork
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
