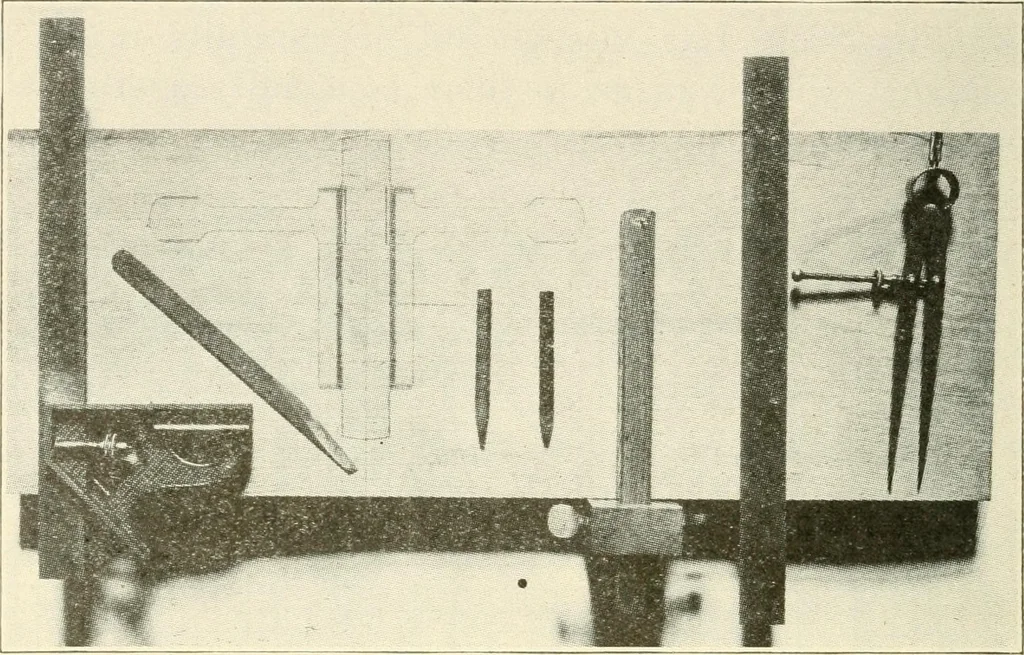

sed in makinga lav-out on paper. The shrink rule is used in either case. On the board lay-out, the try-square and knife areused in scoring lines across the grain of the wood and thegage for lines along the grain. The board should showthe general construction of the pattern, the draft, thefinish,… … Fig. 524. Lay-Out Board. After the lay-out has been set out, allowance maybe colored with a red pencil; the part representing thecores and core-prints may be outlined with a blue pencil;and the various knife and gage lines may be gone overwith a sharp-pointed 2H pencil to make them easilyvisible.…
