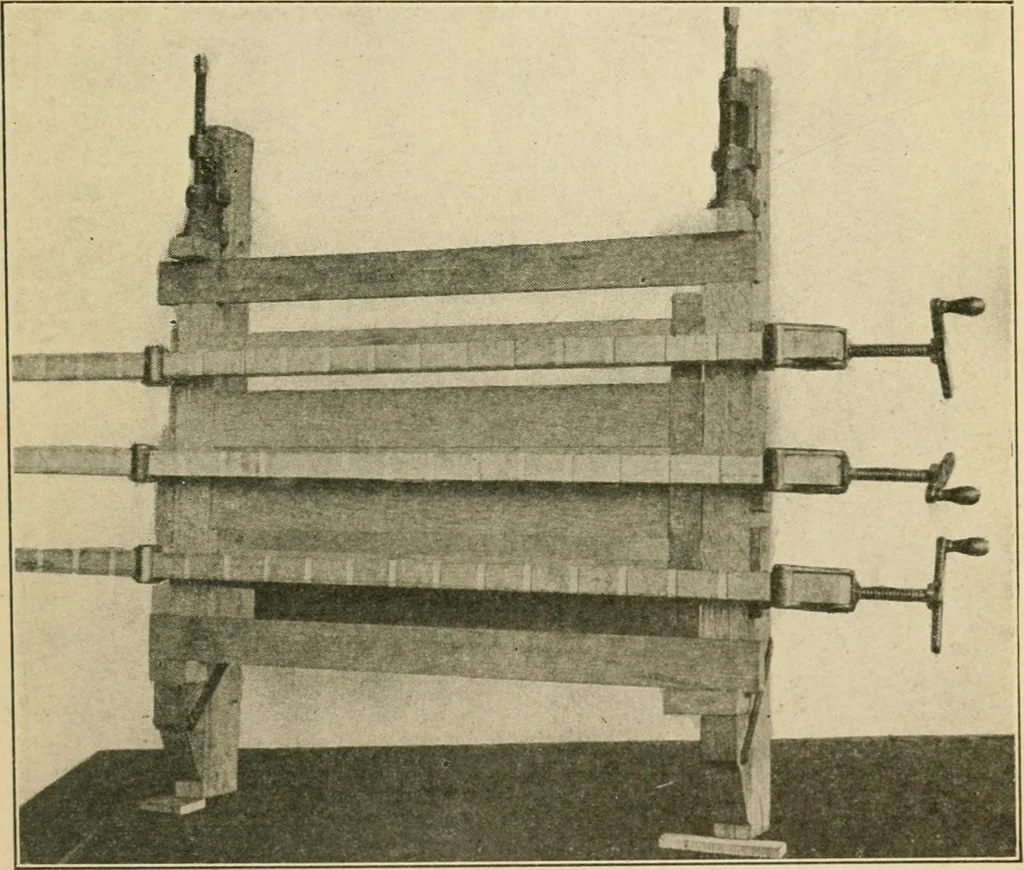

ps suffice for the four center piecesbecause they are so close together that there is littledanger of springing the cross rails. Usually, thereshould be a clamp opposite each tenon. Notice alsothe framing square in position to test the corner. CLAMPING 87 Tightening Clamps. In applying several… … Fig. 66. Clamping screws have been turned through the nuts. Alwaysplan to keep the movable jaw as near to the end asyou can. It is often necessary to turn the screwback and to move the otherjaw up a notch afterthe tenons have been forced into the mortises. ss ELEMENTARY CABINETWORK Squaring with…
