Elementary course in woodwork ; designed for use in high and technical schools, with one hundred and thirty-four illustrations, by George Alexander Ross (1901)
Ross, George Alexander · Chicago, New York, A. Flanagan Company · leaf 61

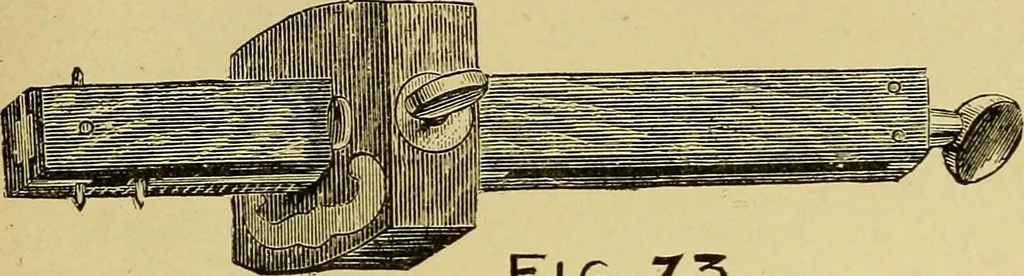

FlG,7 0 ^s> Fig.in. J Care should be taken to avoid this fault in this ex-ercise. (A mortise gauge such as a joiner uses is shown in Fig. 73; it hastwo spurs, one being ad-justed by the thumbscrew at the end of the I 1 F\&, 7 2 shank. We will use a mortise gauge in our worklater on.)… … Fig,73. After the pieces have been cut, put them together,having the face sides together, and finish smoothly. EXERCISE NUMBER 4. KEYED MORTISE AND TEXOX, WITH BRACE. This method of joining timbers is sometimes used inheavy frame work, but can be used to advantage inlight frame work that has to be…
Woodwork (Manual training)
