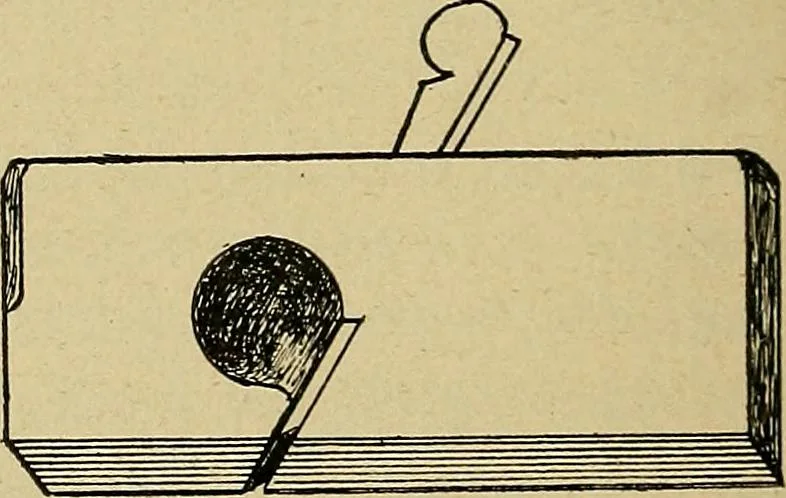

e so varied in form that it would be use-less to try to describe them here. The molding shownin the drawing is given for practice in the use of themolding plane. A rabbet is generally a square corner cut out of theedge of a piece so as tolap over, or to make aplace for glass, etc., asin window… … ELEMENTAEY COURSE IN WOODWORK. 63 To cut the rabbet, the iron combination plow, bead-ing, and rabbeting plane may be used, an illustrationof which is shown in Fig.79. This tool can be set up asa rabbet plane or fillister,having a fence to guide italong the side and a shoeto stop its cutting when…
