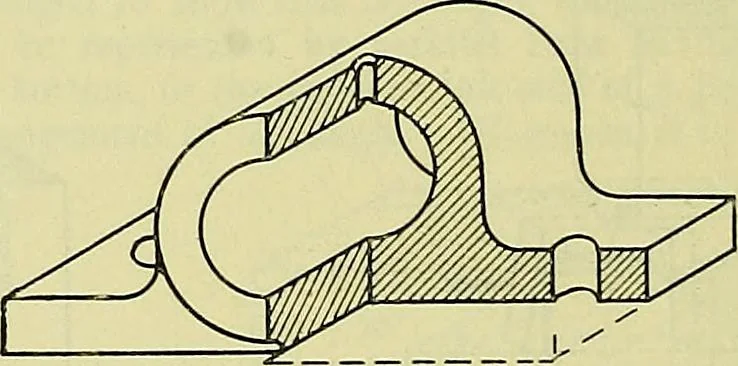

& ■^ X —rr^ \a … Figs. 382, 383.—Picture-frame mitred joint. Fig. 384.—Cast-iron bearing block.Showing parts in section. 5. The cogged joint (Figs. 371, 372). First draw the parts separated, as shown, then draw the complete joint. Scale J full size. 6. The grooved and tongued joint (Figs. 373, 374). First draw the…
