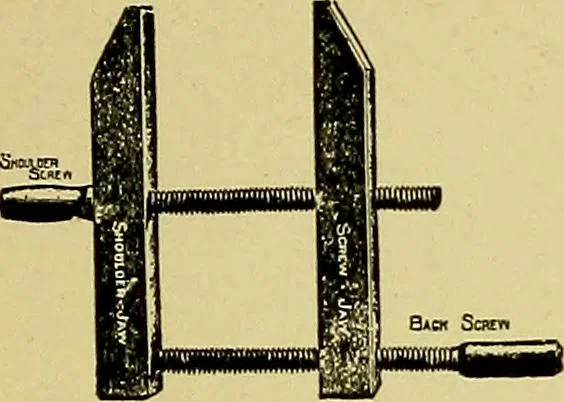

(see note on glue at the end ofthe book), and clamp the piecestogether with handscrews.Hands crews are of the form asshown in Fig. 96. In order further to strength-FlG* 96- en this kind of joint, small iron pins may be driven into the back throughthe tenon, but they must not come through the… … EXERCISE NUMBER 7. DOVETAILING. One of the most important methods employed bythe joiner is that termed dovetailing, which is of threekinds, namely, common, lap, and miter. Commondovetailing (see Fig. 97) shows the form of the pins orprojecting parts, as well as the excavations made toreceive them.…
