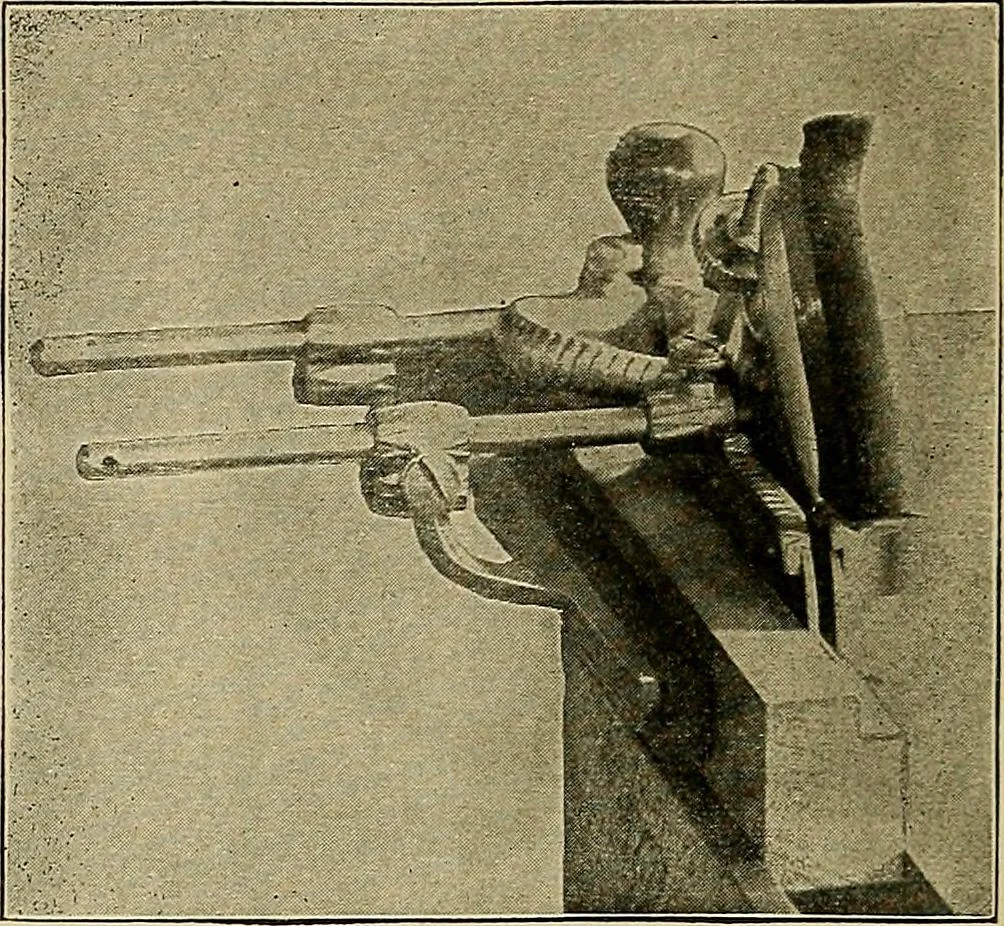

one from the face side, and all cutting having beendone to the lines, it necessarily follows that the faceside of the door will be flush. This is absolutely nec-essary for the molding and the rabbet to match.)Take the combination plow and set it to cut the rab- 84 ELEMENTARY COURSE IN WOODWORK.… … Fig. 108. Fig. 108 shows how this may be done. After cut-ting the rabbet, stick the molding (which in this caseis called a Gothic or Scotia molding). Prepare thestiles as shown in Fig. 107, B. The joining of the molding is to be what is knownas coping. This is done in the following manner:…
