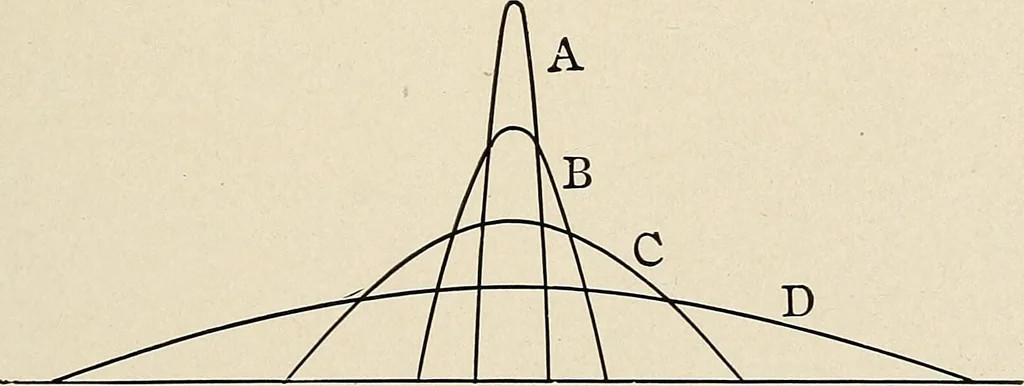

- 7), 6o^o [1 + cos 2 (</> =F CO -7)], (5) and the average flow of power is po = avg p, (6) Such a wave thus consists of a combination of a steady flow ofpower along the circuit, jpo, and a pulsation or surge, pi, of the samenature as that of the standing wave (2): pi =^%-2*cos2((/)Tco-7).… … Fig. 39. — Starting of Impulse, or Traveling Wave. upon a part of the circuit, as shown by curve A in Fig. 39, or if by alocal short circuit a quantity of magnetic energy is impressed upona part of the circuit. This energy then gradually distributes overthe circuit, as indicated by the curves B, C,…
