Elementary lectures on electric discharges, waves and impulses, and other transients (1914)
Steinmetz, Charles Proteus, 1865-1923 · New York, London, McGraw-Hill book co., inc. · leaf 124

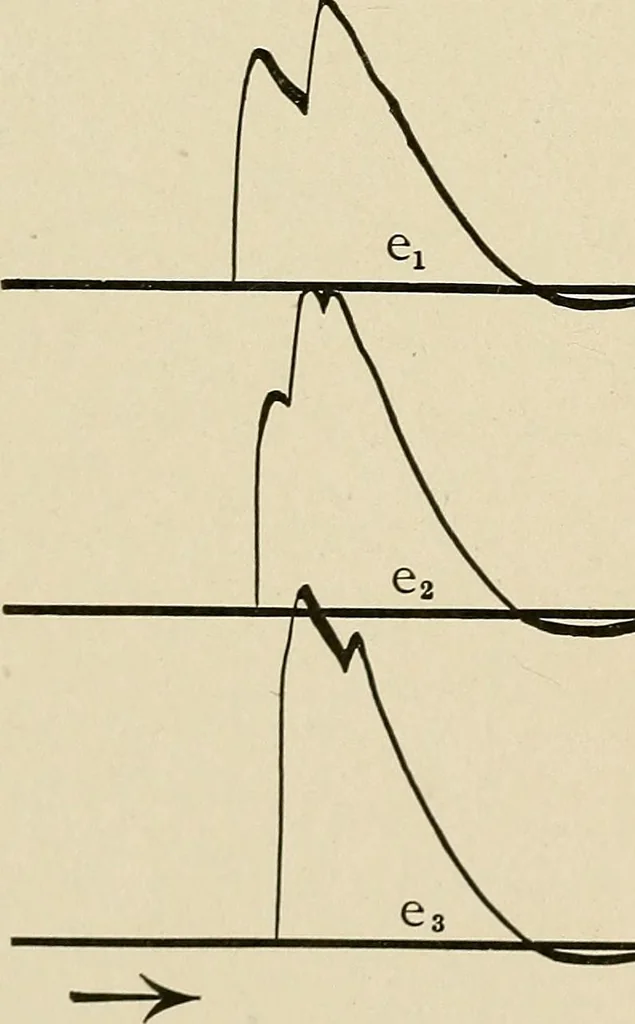

Fig. 51. —CD11145. — Reproduction of Oscillogram of Propagation ofImpulse Over Transmission Line; no Reflection. Voltage, … Fig. 52. — CD11152. — Reproduction of Oscillogram of Propagation of Im-pulse Over Transmission Line; Reflection from Open End of Line. Voltage. T HAVE LING WAViES. lot give no reflection. The upper curve shows the voltage of theimpulse at the beginning, the middle curve in the middle, and thelower…
