Elementary lectures on electric discharges, waves and impulses, and other transients (1914)
Steinmetz, Charles Proteus, 1865-1923 · New York, London, McGraw-Hill book co., inc. · leaf 129

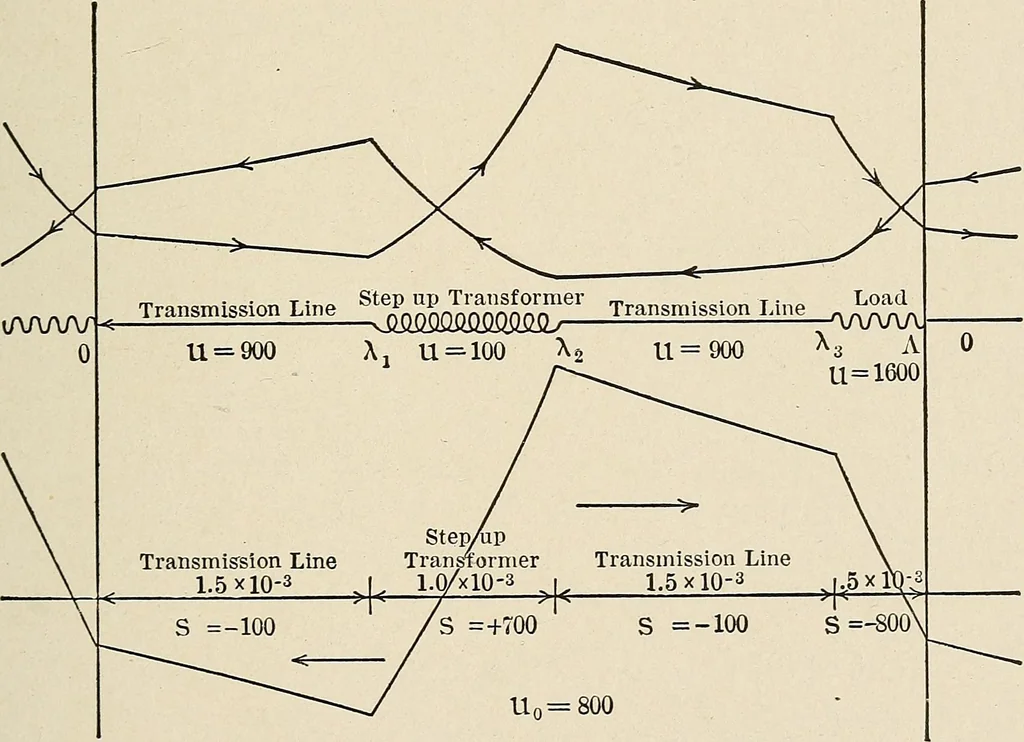

~^^^^^, the energy of the wave decreases rapidly. Here the coefficients of pi, p2, ps must be such that the wave at thebeginning of one section has the same value as at the end of thepreceding section. In general, two traveling waves run around the circuit inopposite direction. Each of the two… … Fig. 54. — Energy Distribution in Compound Oscillation of Closed Circuit; High Line Loss. Assuming that the maximum value of the one wave is 6, that ofthe opposite wave 4 megawatts, the power values of the two wavesthen are plotted in the upper part of Fig. 54, and their difference,that is, the…
Electricity · Electrical engineering
