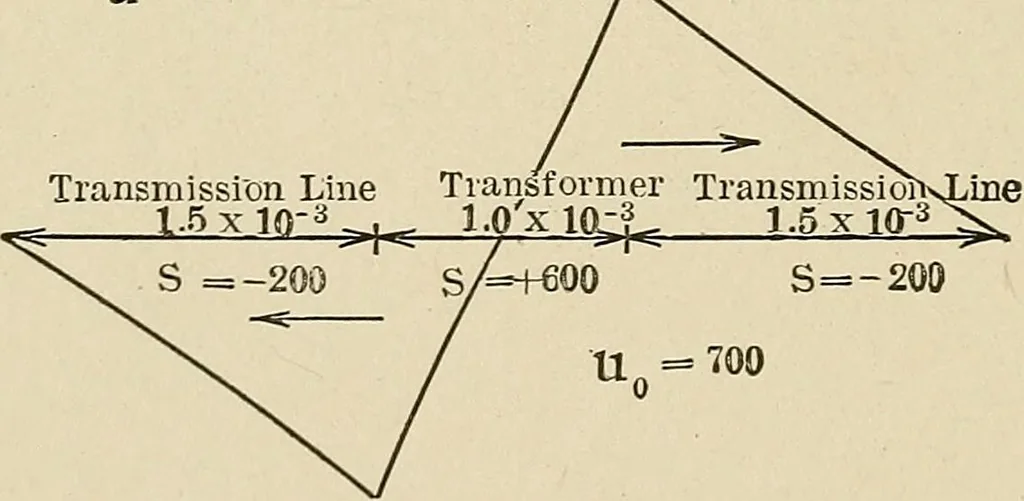

Transmission Line Transformer Transmission Line H ^TRfMrifOT^p 1- U =900 U =100 yv U= … Fig. 57. — Energy Distribution in Compound Oscillation of Open Circuit. In this case the two waves must be of the same intensity, soas to give 0 as resultant at the open ends of the line. A powernode then appears in the center of the transformer. 41. A stationary oscillation of a compound circuit…
