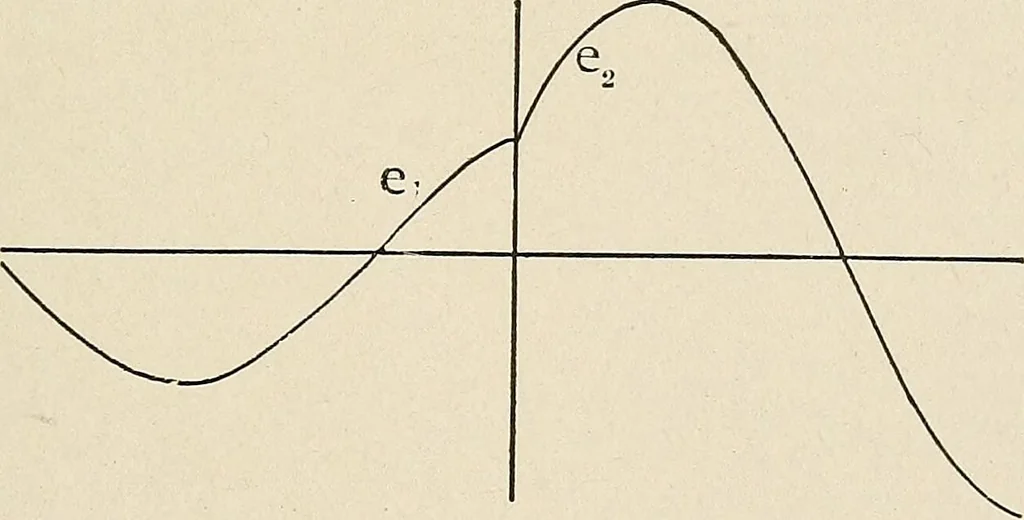

t; that is, a change of phase angle occurs at the transitionpoint. This is illustrated in Fig. 58. Let Zq = 200 in the first section(transmission line), Zo = 800 in the second section (transformer). The transformation ratio between the sections then is V ^t^^^; that is, the maximum voltage of the… … Fig. 58. — Effect of Transition Point on Traveling Wave. If then e and i are the values of voltage and current respec-tively at the transition point between two sections 1 and 2, andei and ii the maximum voltage and maximum current respec-tively of the first, 62 and 22 of the second, section, the…
