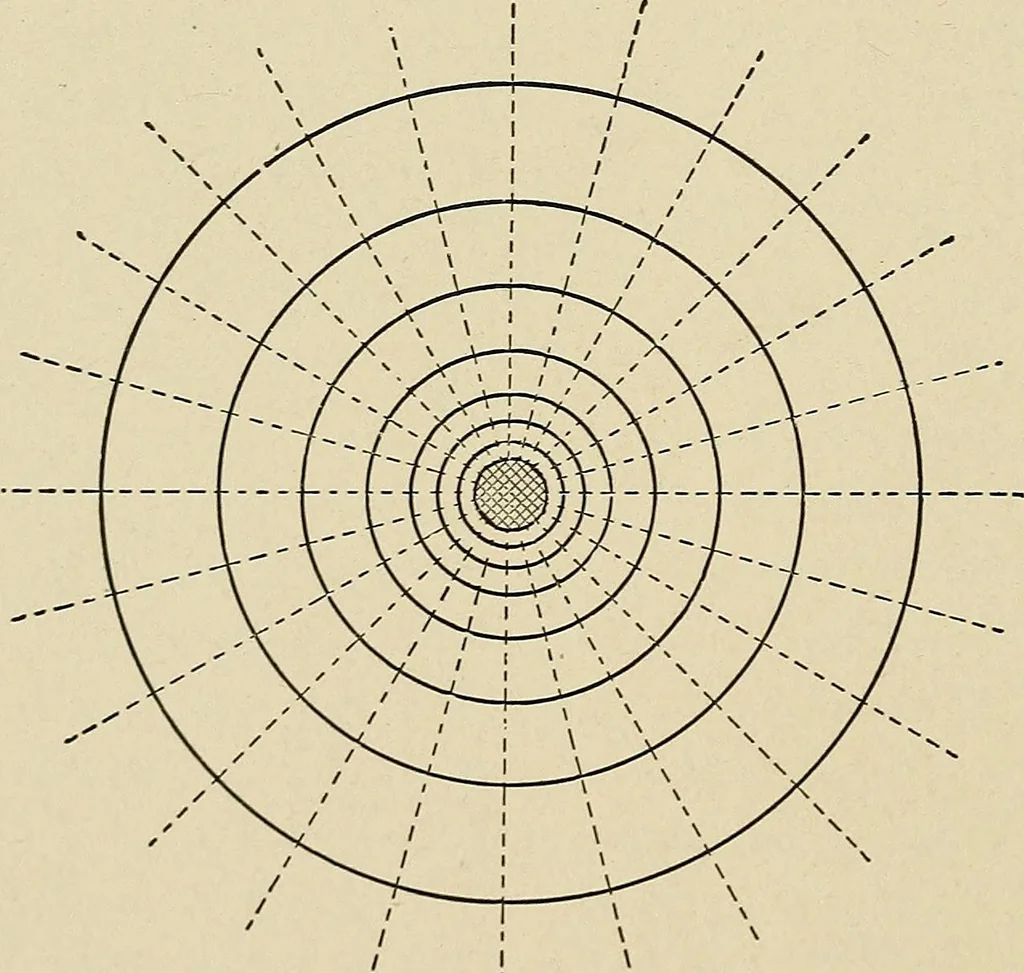

e of the electric circuit, that is, of itsmagnetic and dielectric field, is of first importance. LECTURE II. THE ELECTRIC FIELD. 7. Let, in Fig. 7, a generator G transmit electric power overline A into a receiving circuit M. While power flows throughthe conductors A, power is con-sumed in these… … Fig. 8. — Electric Field of Conductor. The conductor is surrounded by a magnetic field, or a magneticflux, which is measured by the number of lines of magnetic force $.With a single conductor, the lines of magnetic force are concentriccircles, as shown in Fig. 8. By the return conductor, the…
