Smith, Leslie John, 1881- [from old catalog] · New York, The Macmillan company · leaf 56

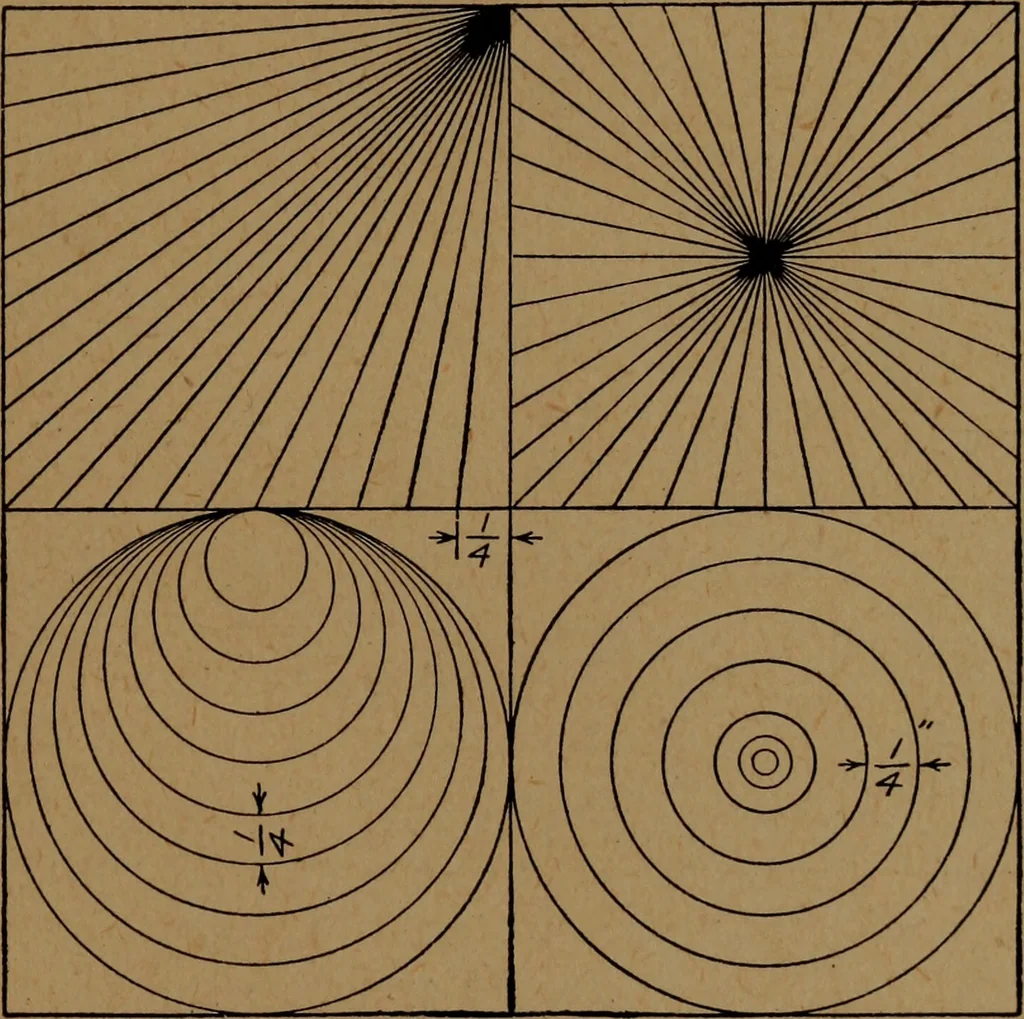

possible, even if some parts are notsatisfactory, as the exercise is for the purpose of givingexperience in the use of the pens. This experience gained 44 SHORT COURSE IN DRAWING WITH INSTRUMENTS 45 on a small drawing will prevent ones spoiling a morecomplicated drawing later on. After the first… … Figure 26. inking-in the lines that converge to the upper right-handcorner in the upper left-hand square, ink the lines towithin about | of the corner; then when all the lineshave been inked-in, the part not done can be completed.By following this method the point at the upper right-hand corner…
Mechanical drawing
