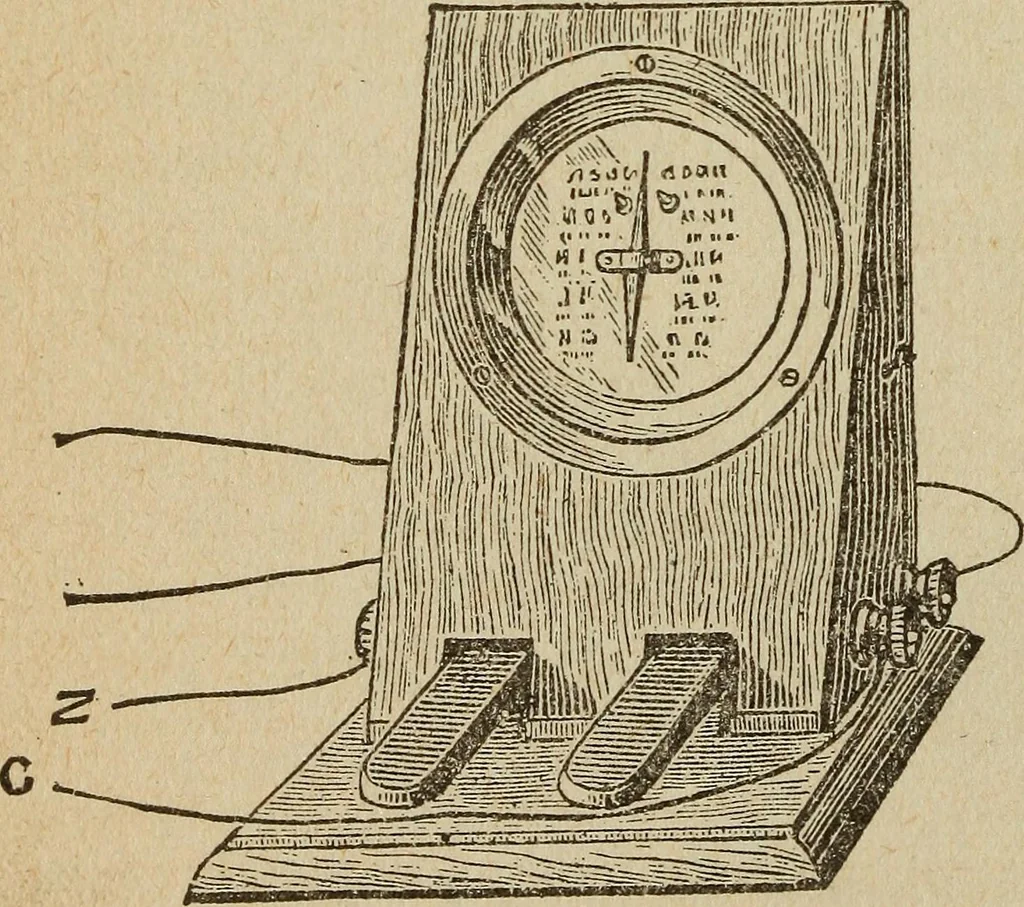

Single-Needle Instrument.—The single--needle instrument (Fig, 160) consists essentially of a vertical galvan-* ometer, in which a lightly hung magnetic needle is deflected to right or left when a current is sent, in one direction or the other, around a coil surrounding the needle; the needle… … CHAP. XII.] ELECTRICITY AND MAGNETISIM. 403 to send currents in either direction through the circuit.a signalling-key or tapper is usually employed.The tapper at one end of the line works the instru-ment at the other; but for the sake of convenience itis fixed to the receiving instrument. In Fig.…
