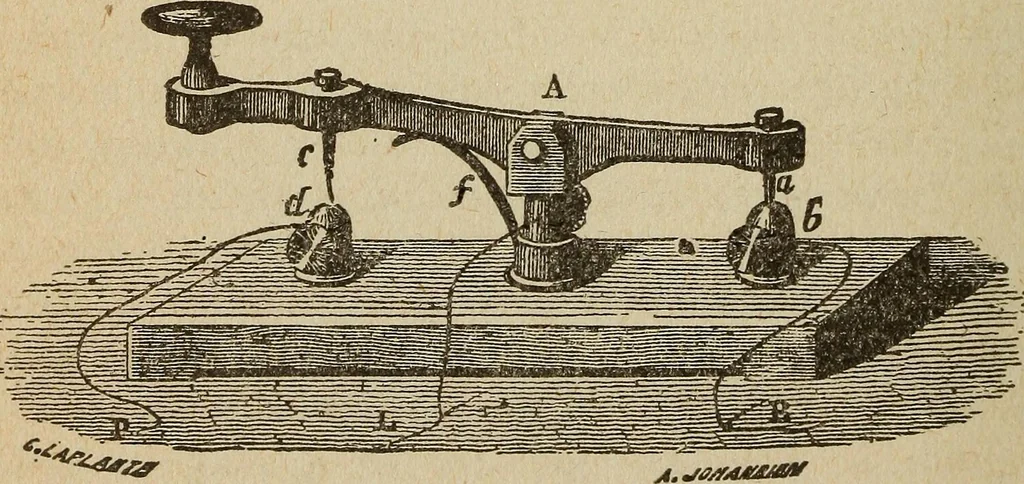

Tig^ 165. a relay. Whenever a current in the line circuit movesthe tongue of the relay it closes the local circuit, andcauses the Morse to record either a dot or a dash uponthe strip of paper. The key K is shown in an. enlarged K … Fig. 164. view in Fig. 164. The line wire is connected with thecentral pivot A. K spring/keeps the front ,en4 of thekey elevated when not in use, so that the line wire is in CHAP. XII.] ELECTRICITY AND MAGNETISM. 407 communication through the rear end of the key with therelay or receiving…
