Elementary lessons in steam machinery and the marine steam engine, with a short description of the construction of a battleship (1893)
Langmaid, Joseph, Gaisford, H · London, New York : Macmillan · leaf 100

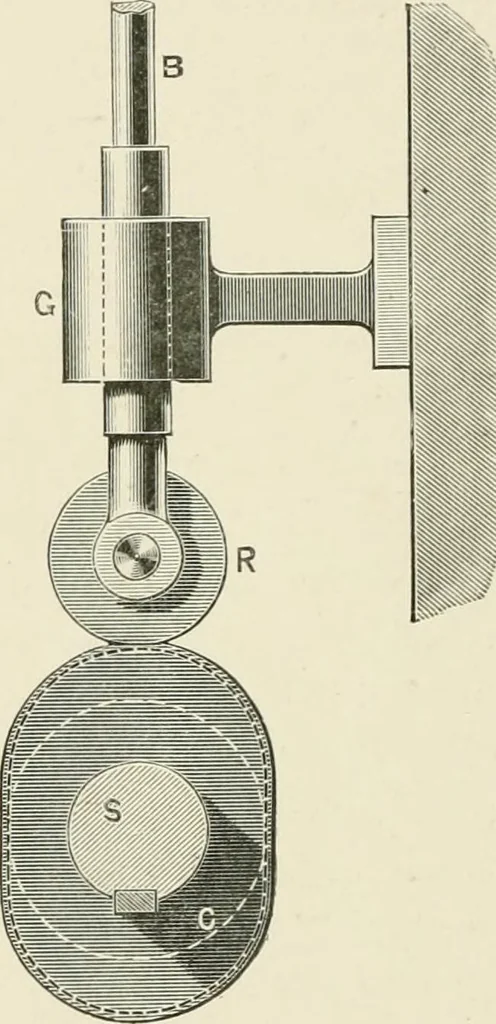

Fig. 38.—Sketch illustrating Conversion of Motion r.v meansof Eccentric with Strap and Rod. (Page 74.) 77 … Fig. 39.—Cam. SO lesson vii CONVERSION OF MOTION si eccentric so as not to slip off it sideways. The eccentric rod isattached by a working joint to the slide valve rod, which latteris constrained to move in a straight line by a guide attached tothe casing in which the slide valve works. As the…
Steam-engines · Marine engines
