Elementary lessons in steam machinery and the marine steam engine, with a short description of the construction of a battleship (1893)
Langmaid, Joseph, Gaisford, H · London, New York : Macmillan · leaf 125

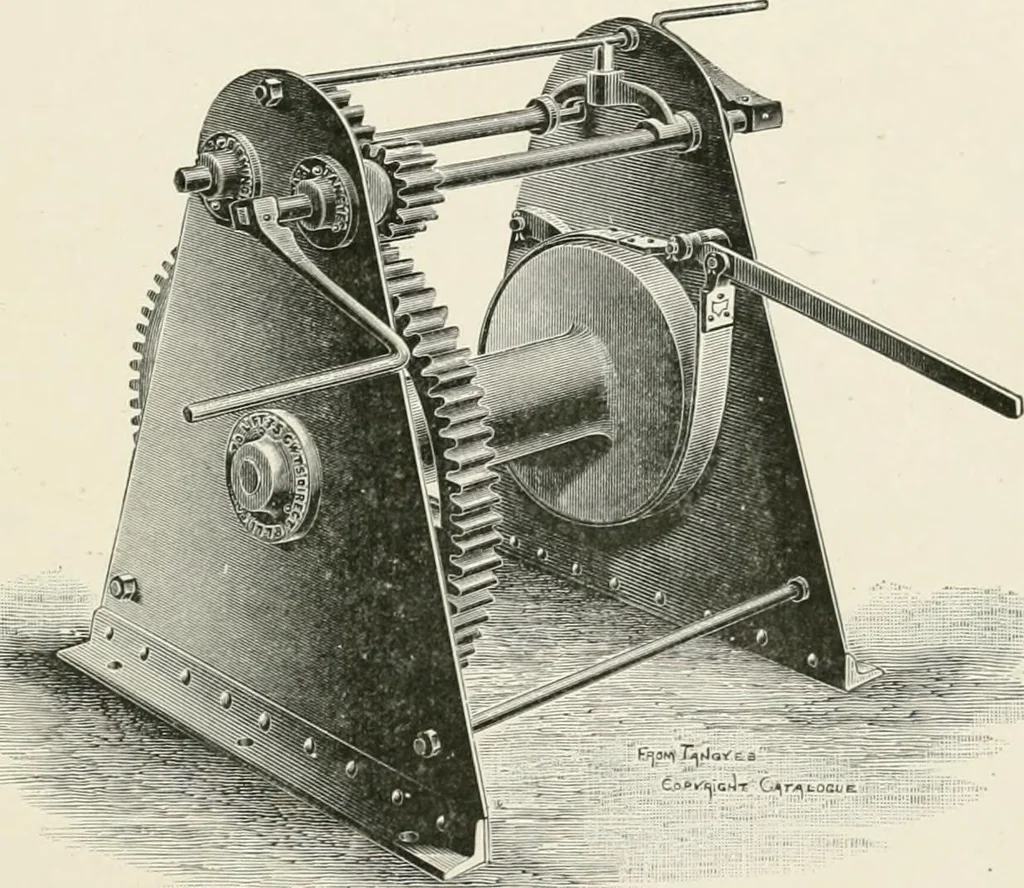

Section through X Y.Fig. 52.—Westons Friction Clutch. 103 LESSON IX FRICTION 105 Brakes, etc.—The force of friction is also employed in trans-mitting power from one shaft to another by leather belting orropes, also in checking or controlling motion by means of brakesof various kinds. An… … Fig. 53.—Double purchase Crab, fitted with Band Brake.From Copyright Catalogue, by permission of Messrs. Tangyes, Limited, Birmingham. LESSOX XPACKING JOINTS Stuffing Boxes and Packing, joints of pipes, etc.—Explanationof method of making piston rod of steam engine work steam-tightin cylinder end…
Steam-engines · Marine engines
