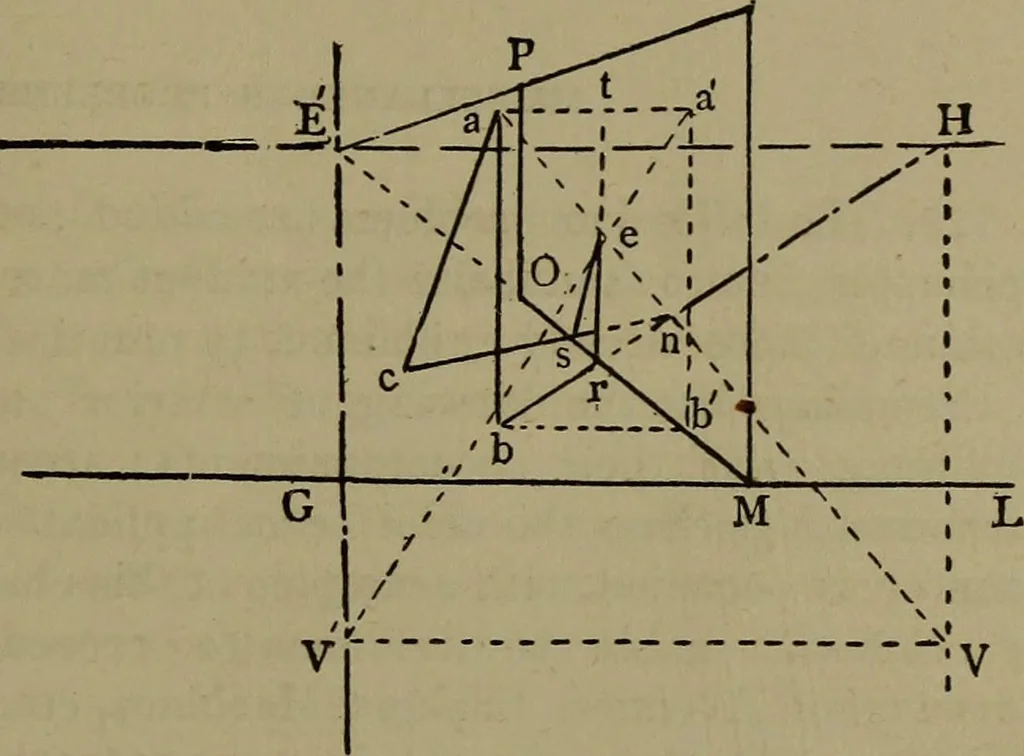

s left as an exercise. Example 7«.—To find Shadows on Side Walls. Let ab, Fig, 51a, a vertical, and ac, an oblique rod, meet thefloor, one at h, the other at c. GL being the ground line ; EH,the horizon ; E, the point of sight; and N V and H, the van-ishing points ofrays, and of theirhorizontal… … Fig. 51a. jSTow : of a vertical EV, perpendicular to GL, for its vanishing lino. First. JH is the perspective horizontal traceplane of rays containing ab ; then rt, parallel to ab, is the per-spective trace of this plane on MNOP. Hence the ray «V, lim-iting rt at e, gives br, the shadow of ab on…
